11-18-2013: 2 hrs

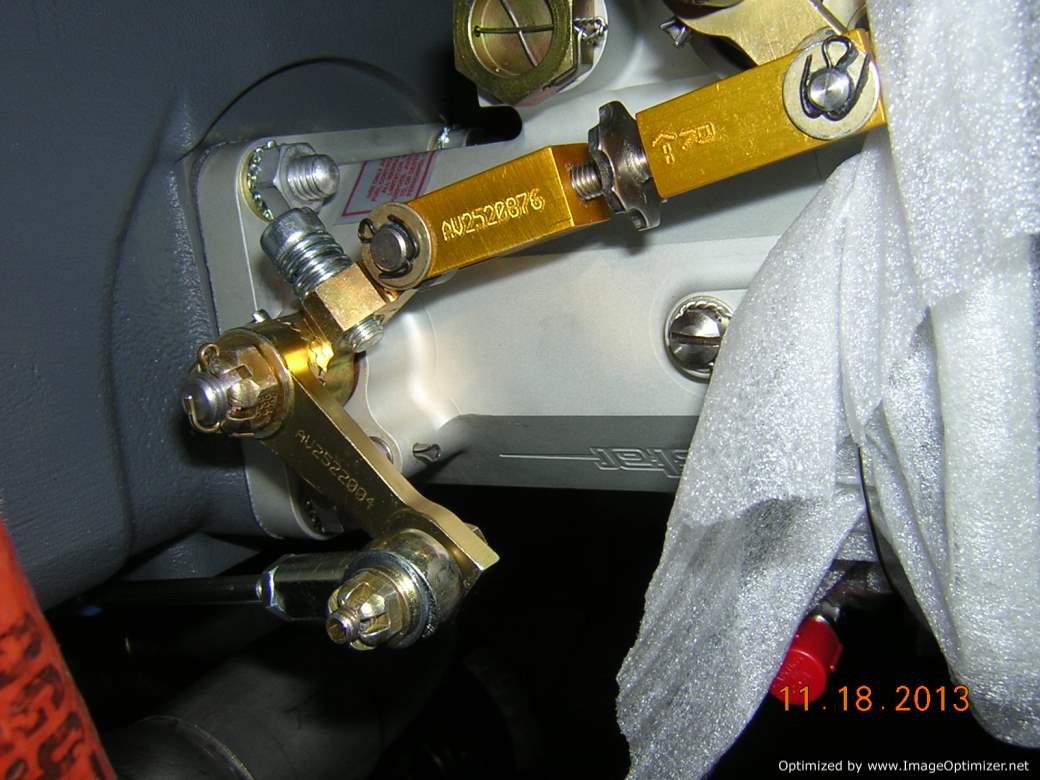

The mixture control uses a straight arm

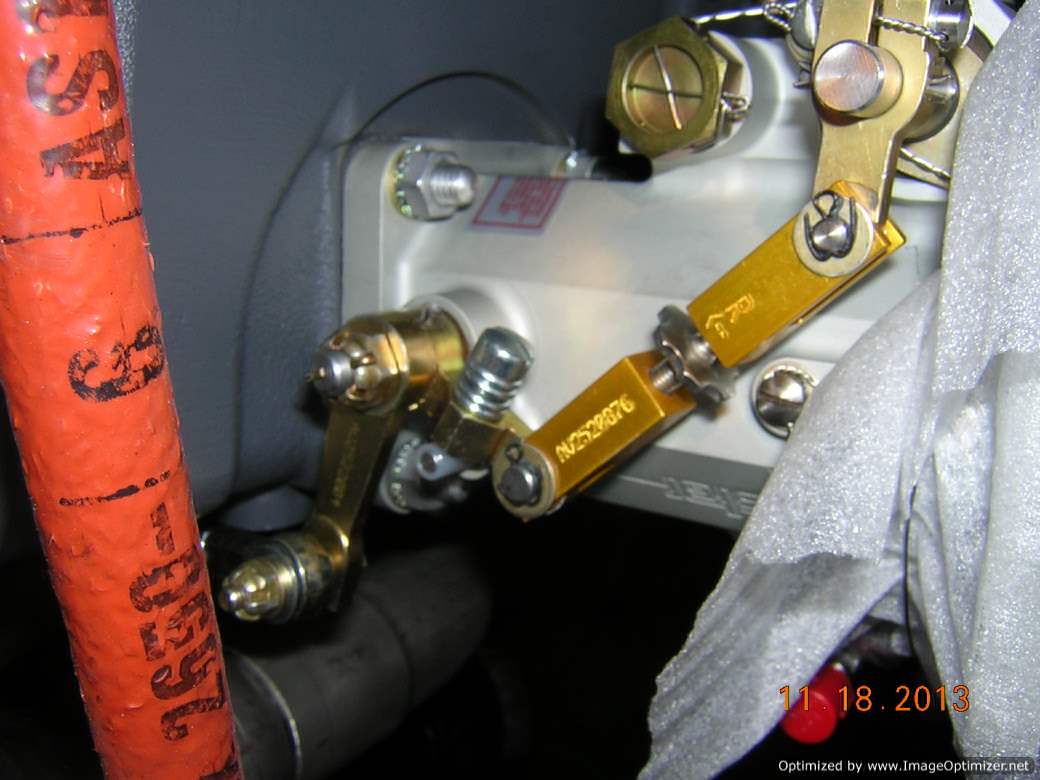

Throttle control arm is a Z shape

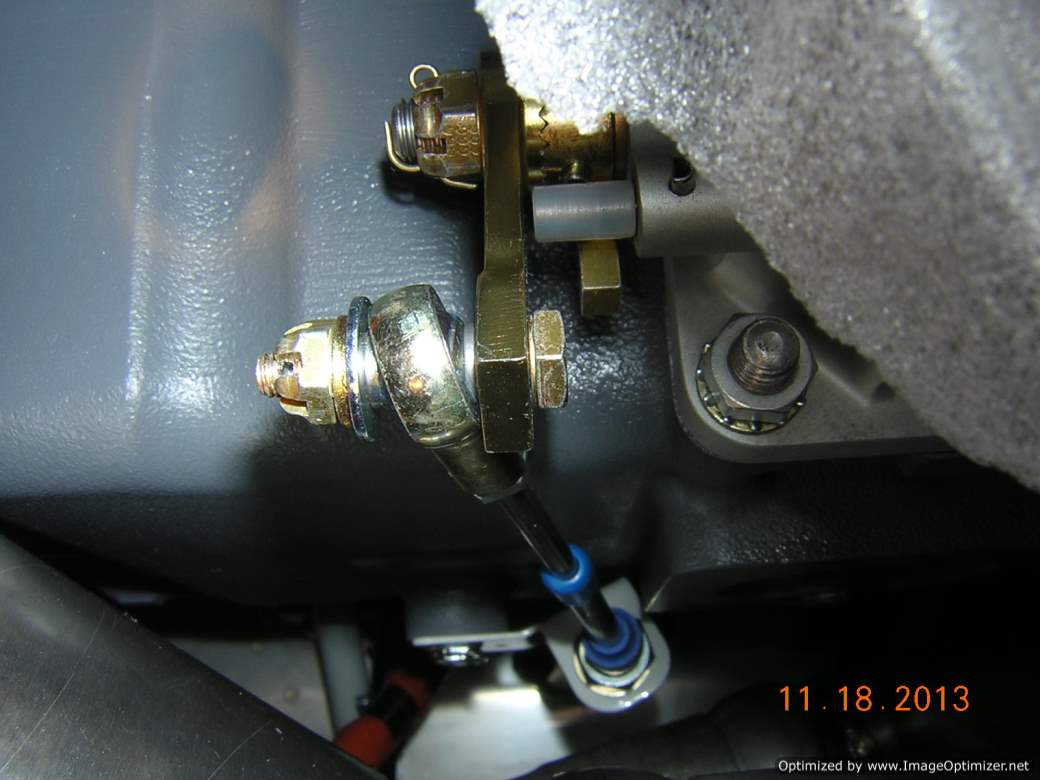

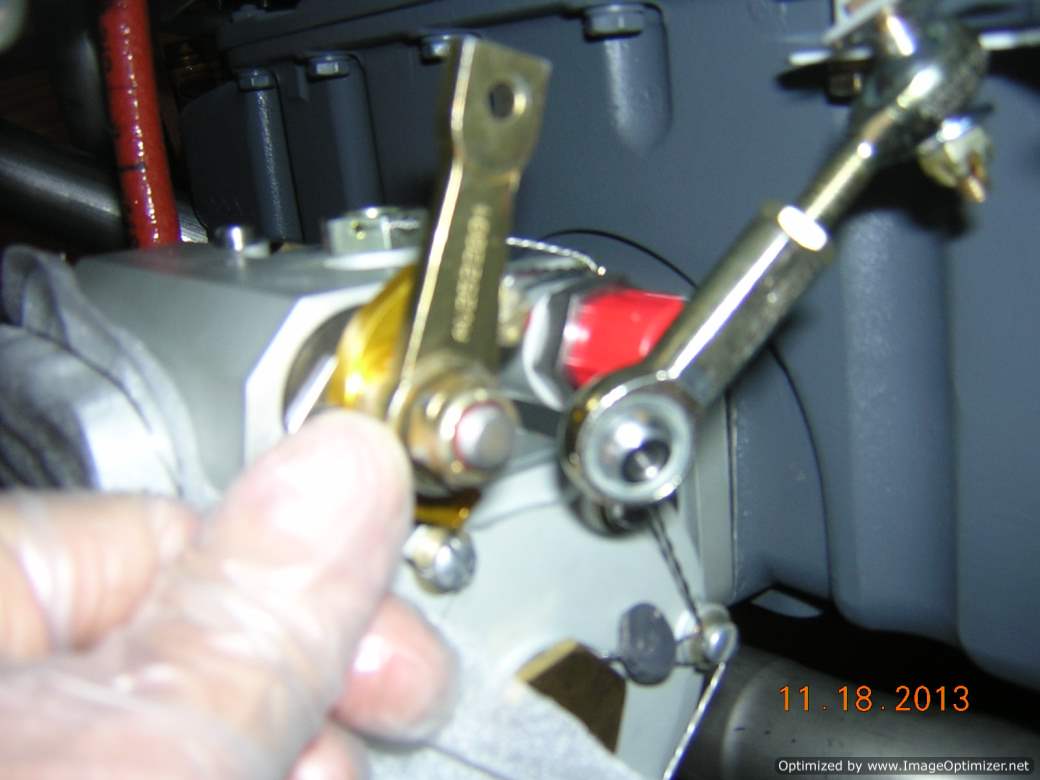

There is a slight interference between the straight mixture control arm and the screw (top one in this picture) after re-clocking the arm, so I swamped the throttle and mixture control arms, so now the Z arm is used for mixture and the clearance issue is gone

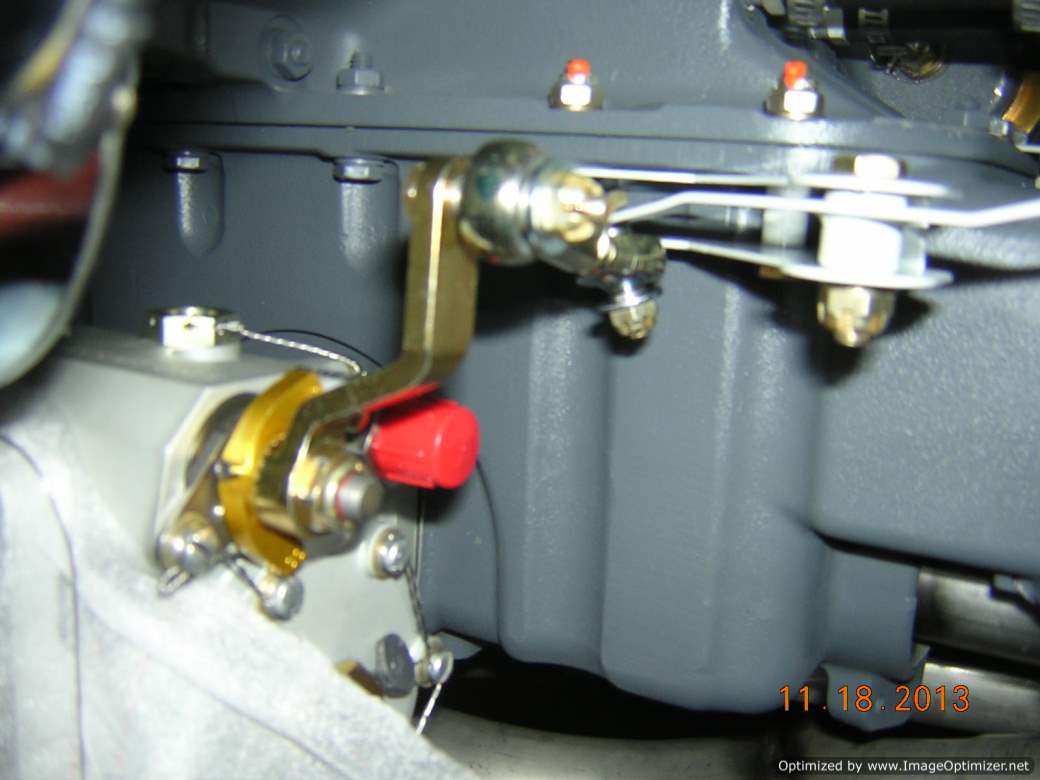

The other control extreme position for mixture, no interference

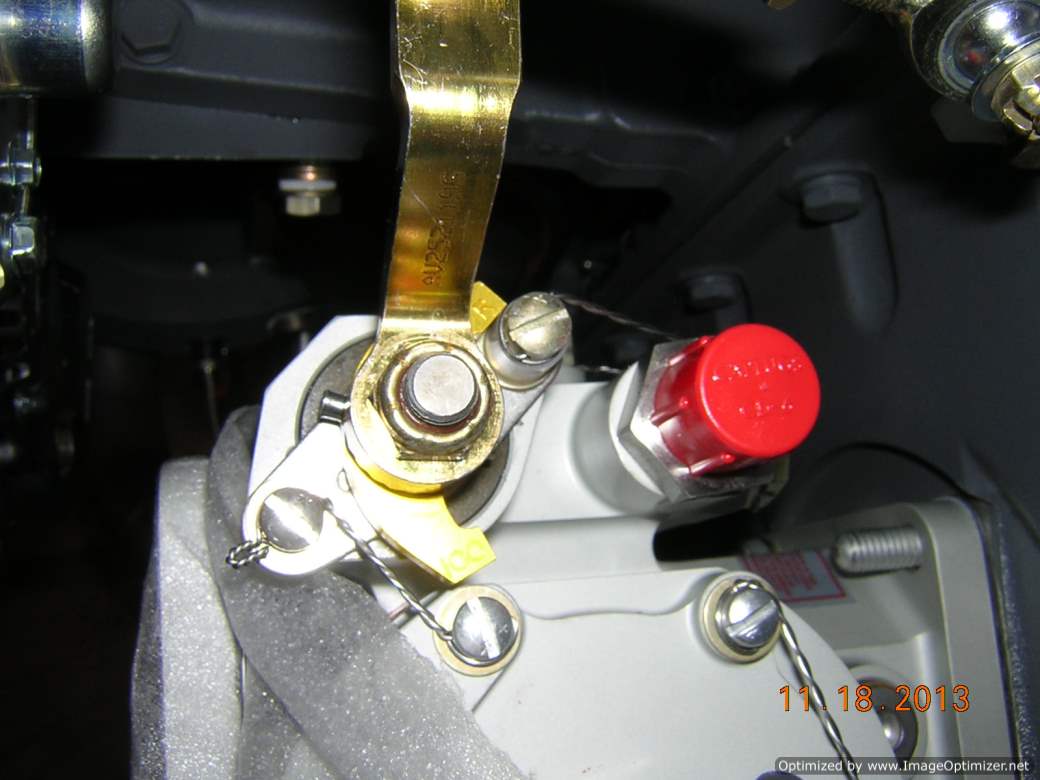

This picture shows clearly the Z control arm for mixture

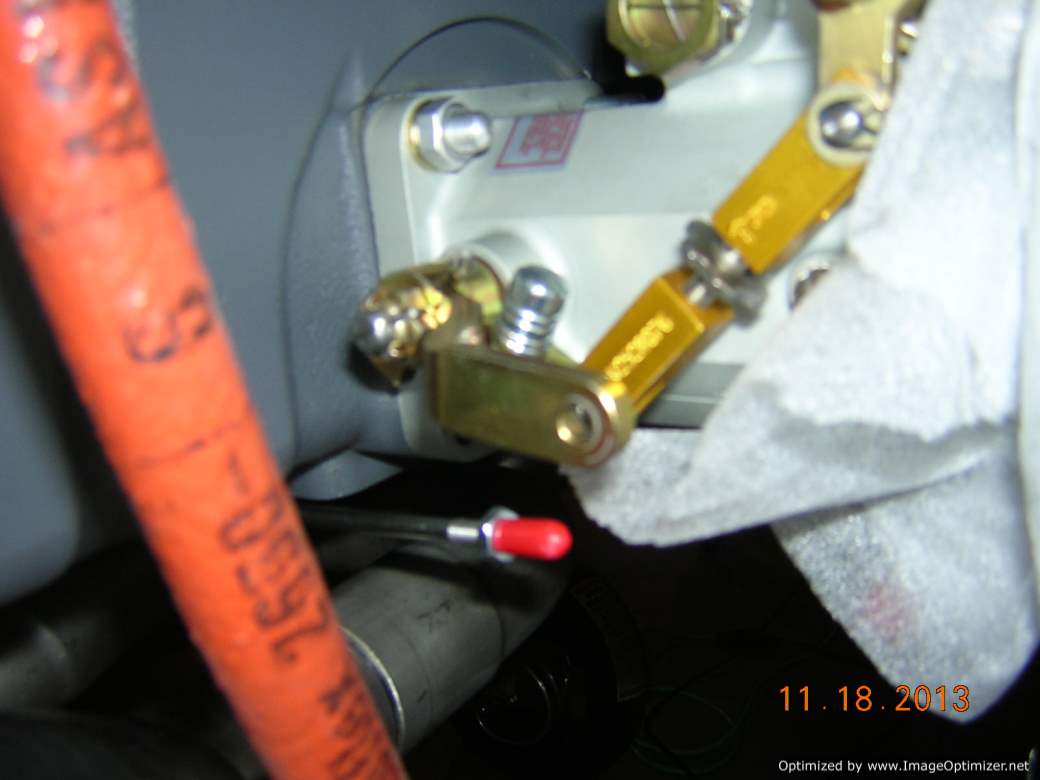

The straight arm is now used on throttle control

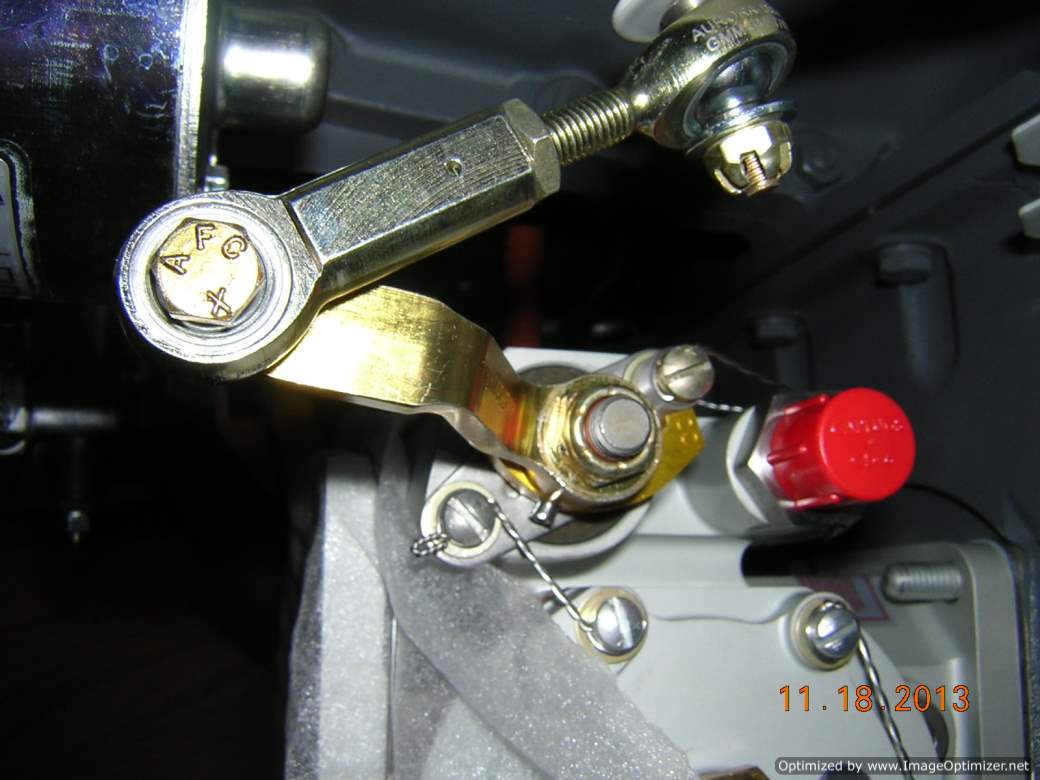

Throttle fully open position
At full open position, the clearance between the straight arm and the stop pin is not great. I have to address this issue
