11-19-2013: 2 hrs

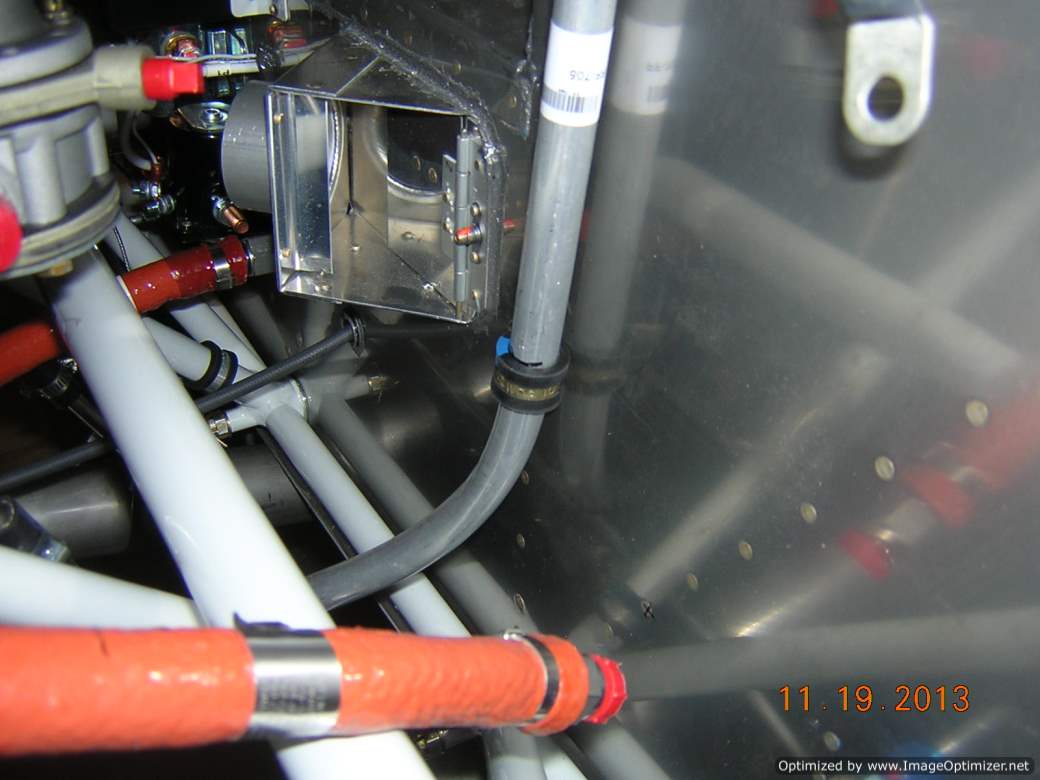

Engine breather tube is attached to firewall

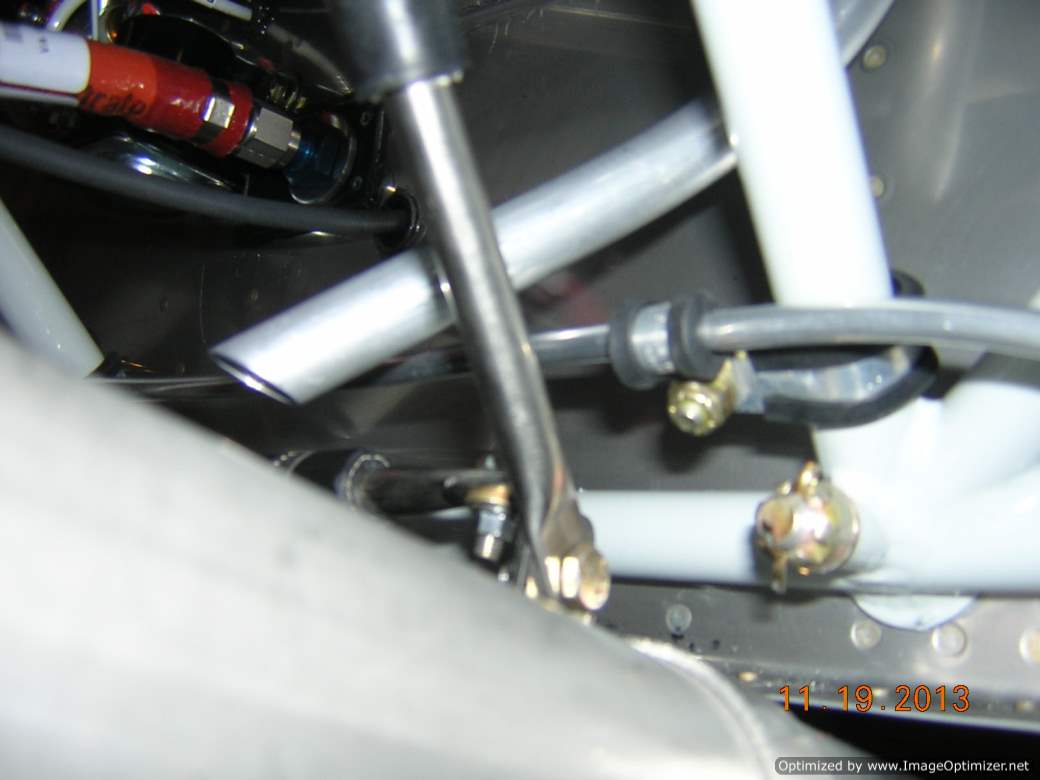

Engine breather tube end

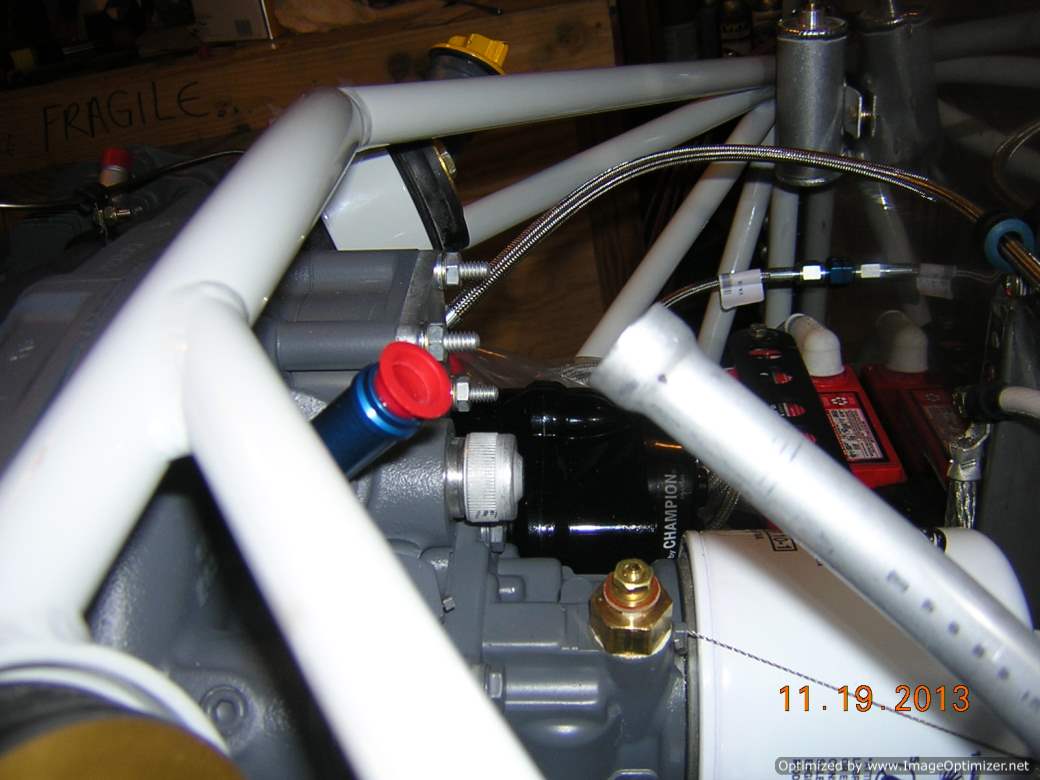

A rubber elbow is needed to bridge the engine breather port and the tube

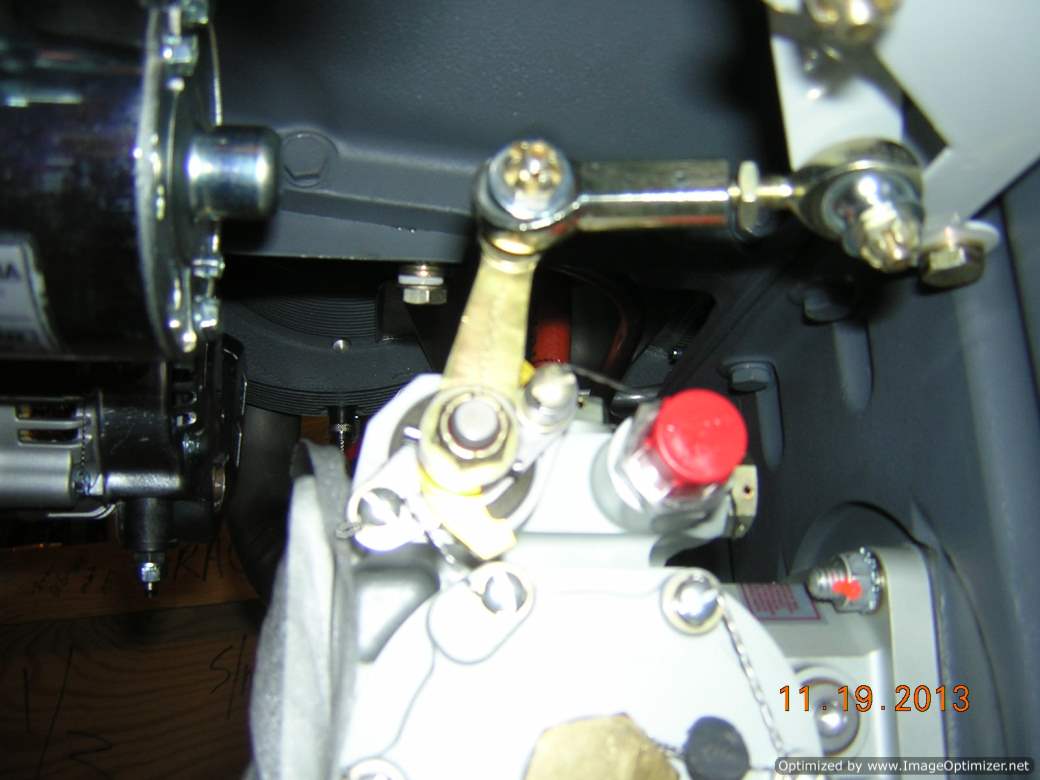

After thinking about the clearance issue on the throttle control arm, the best solution is to swamp it back again, but re-clocking the mixture control arm (straight arm now) to avoid interference with screw, as shown

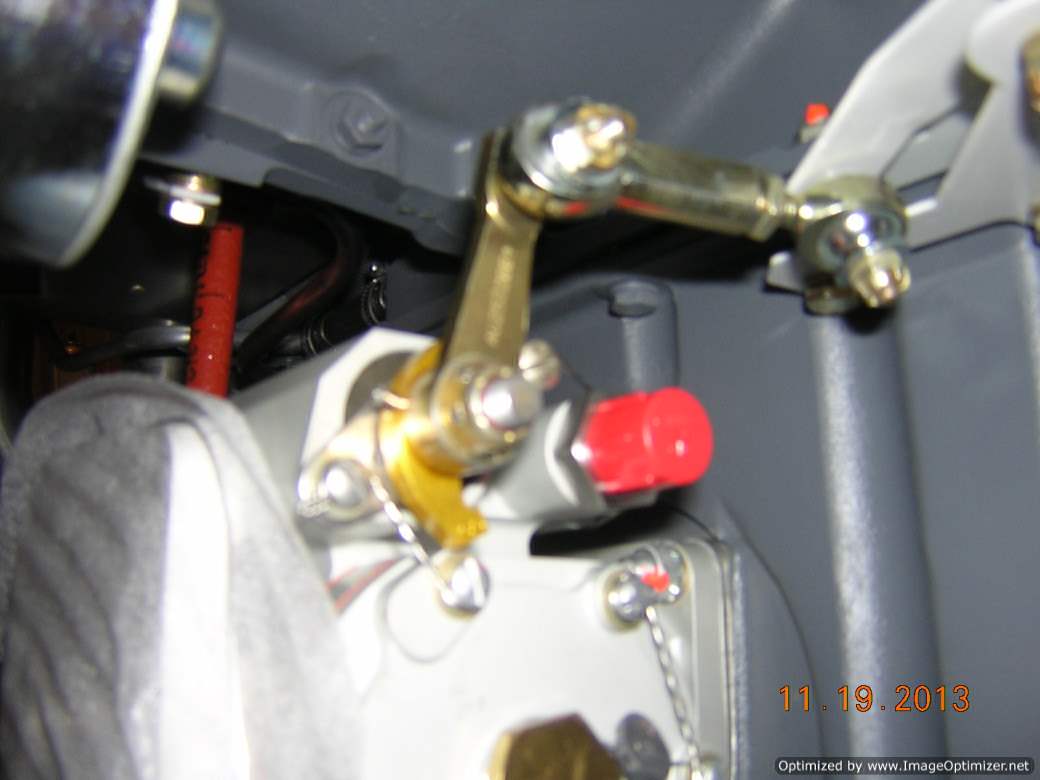

Full rich position, control arm is not touching the screw

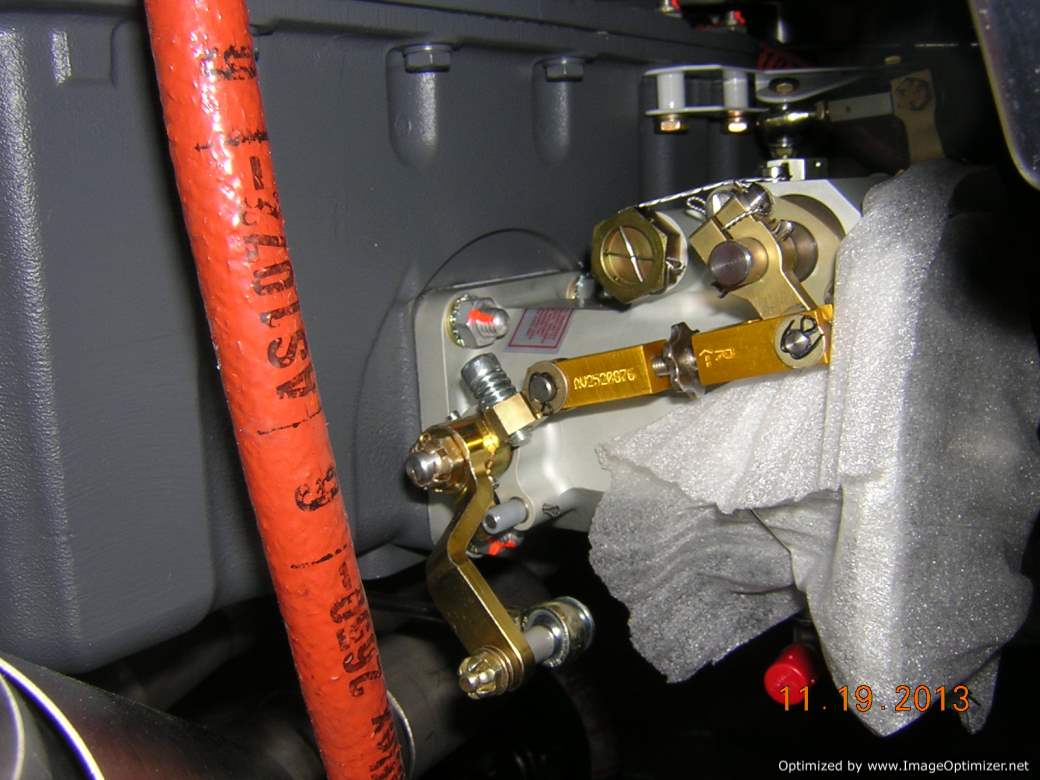

The Z shaped arm is back to the throttle control, no clearance issue

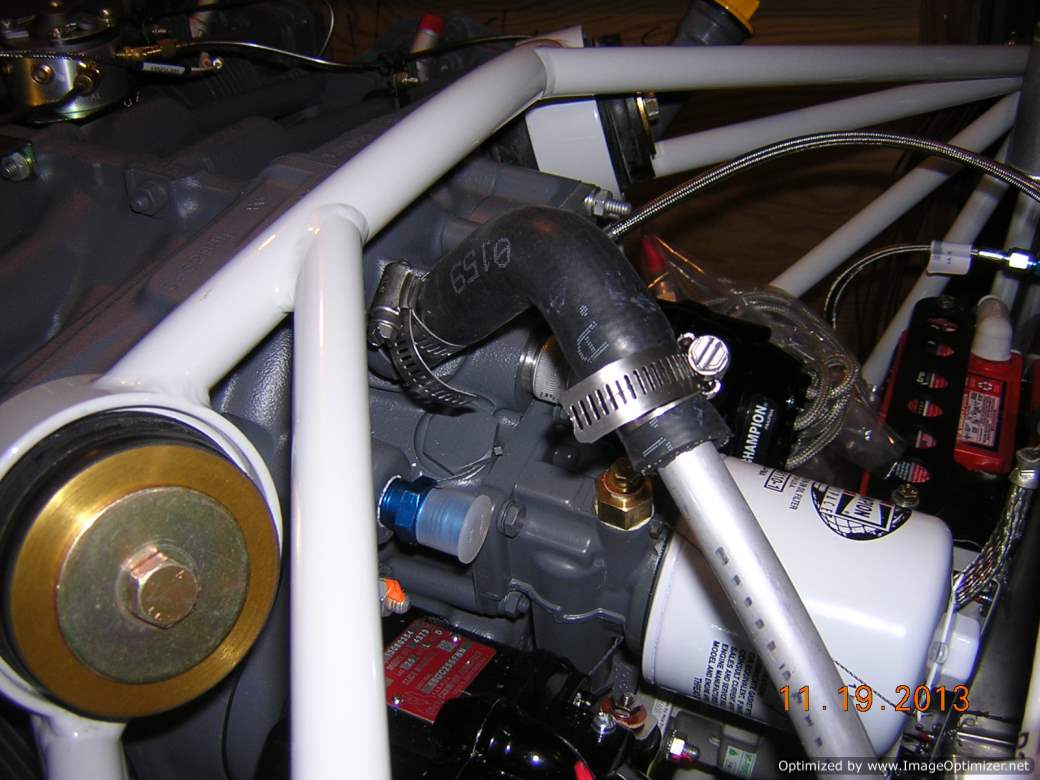

The rubber elbow completed the engine breather tube installation

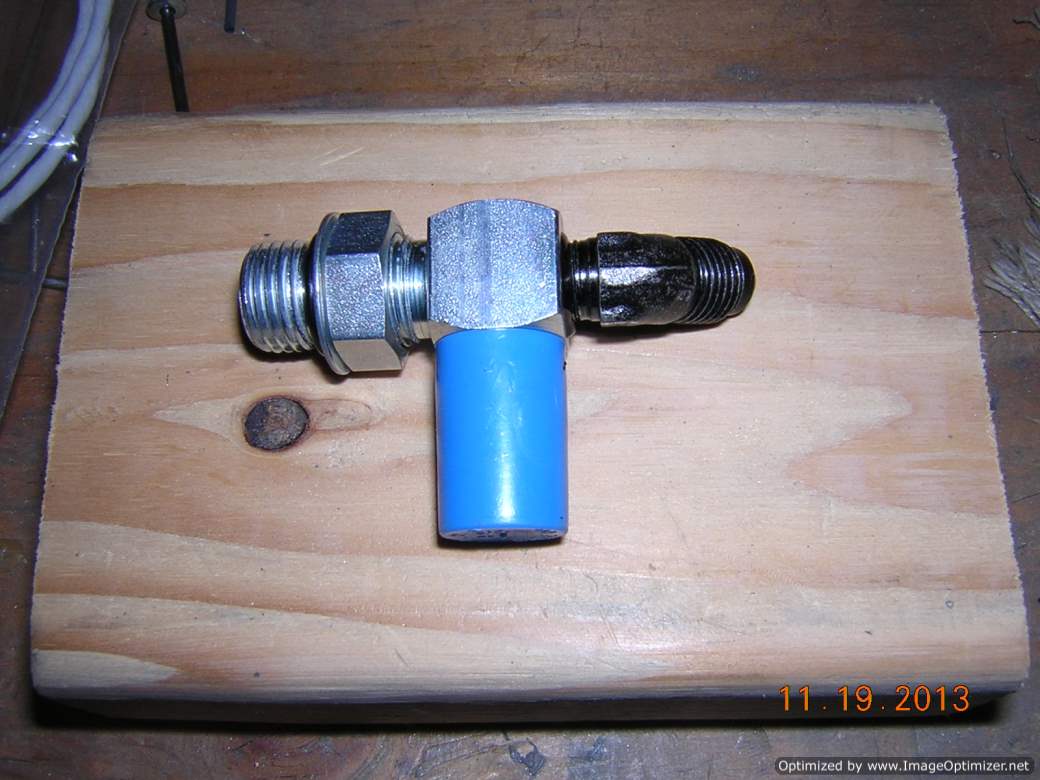

The fuel fitting coming with the engine on the fuel pump outlet will be replaced with this one so fuel can be sent to fuel pressure manifold
Engine breather tube end
A rubber elbow is needed to bridge the engine breather port and the tube
After thinking about the clearance issue on the throttle control arm, the best solution is to swamp it back again, but re-clocking the mixture control arm (straight arm now) to avoid interference with screw, as shown
Full rich position, control arm is not touching the screw
The Z shaped arm is back to the throttle control, no clearance issue
The rubber elbow completed the engine breather tube installation
The fuel fitting coming with the engine on the fuel pump outlet will be replaced with this one so fuel can be sent to fuel pressure manifold
