Shawn Li's RV-7 Construction Log

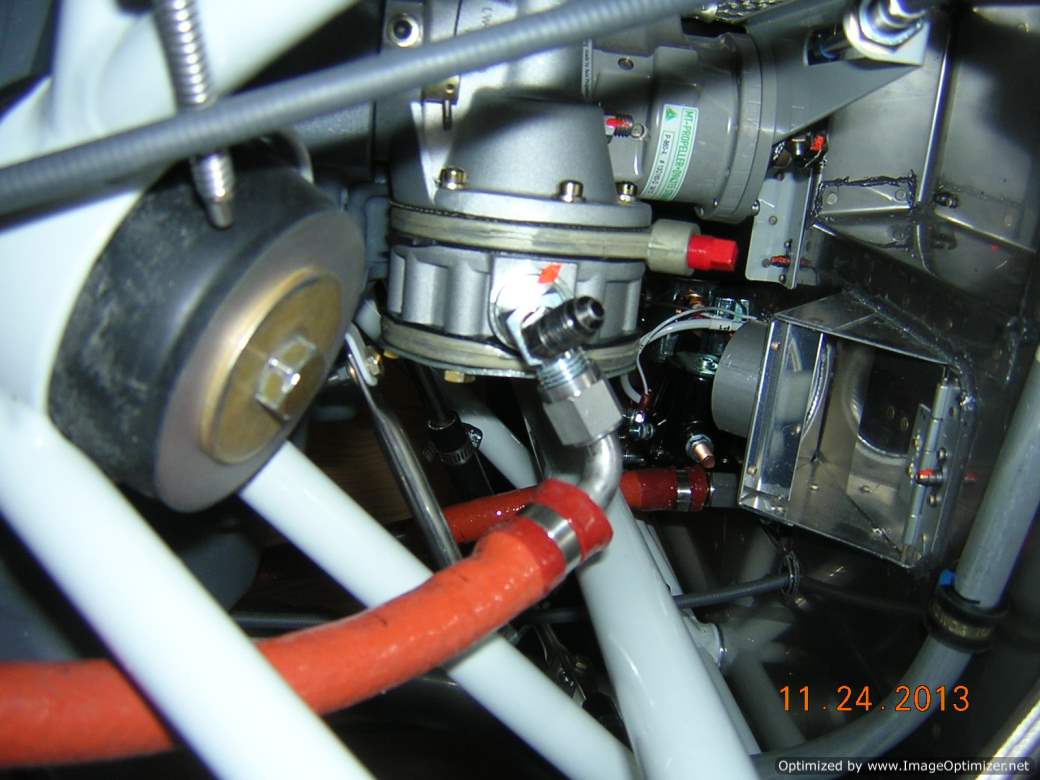

Fuel pump outlet fitting is replaced, restrictor fitting is added for fuel pressure measurement

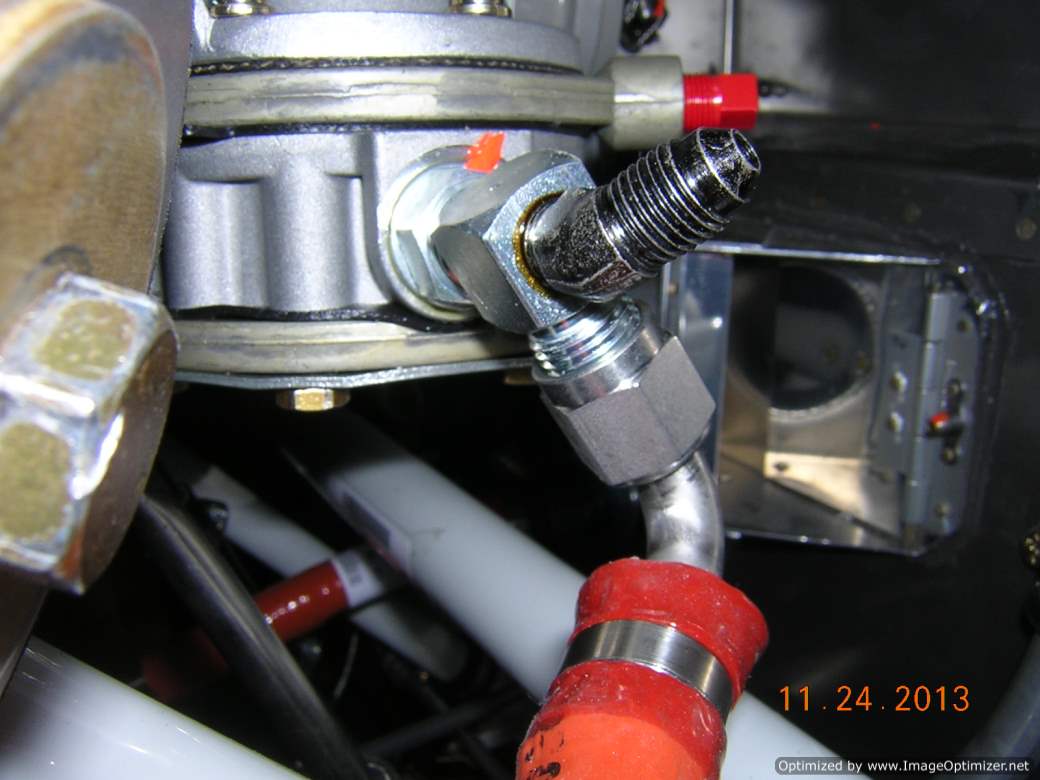

Close up view of the new fuel pump outlet fitting

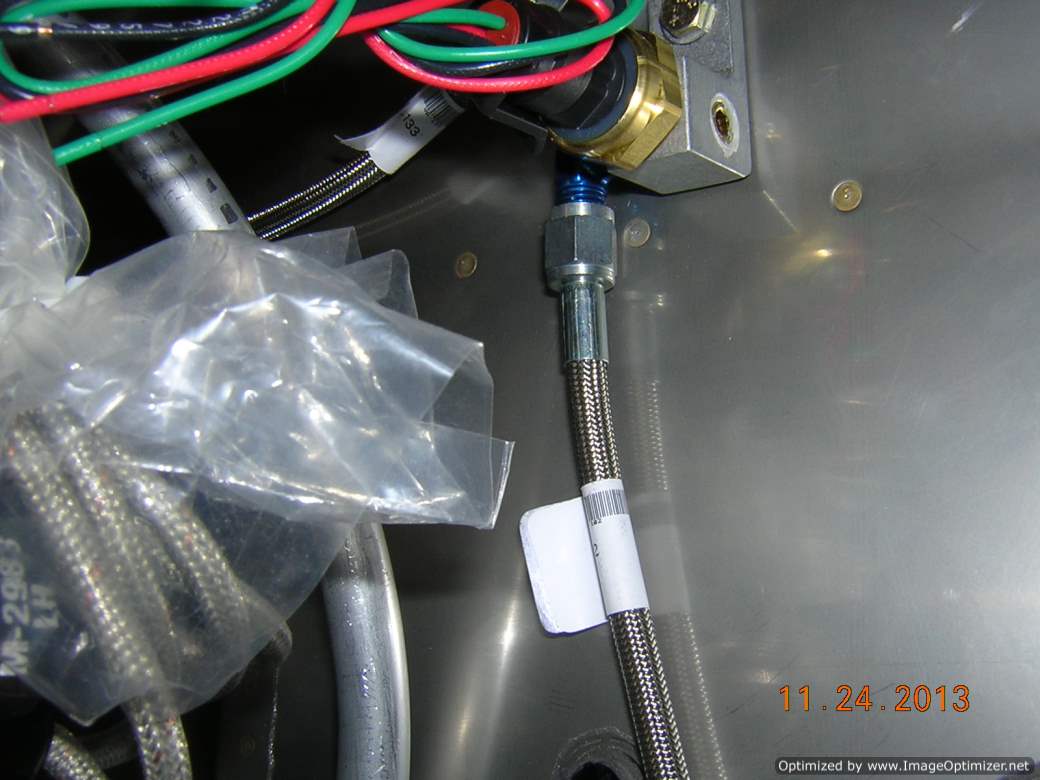

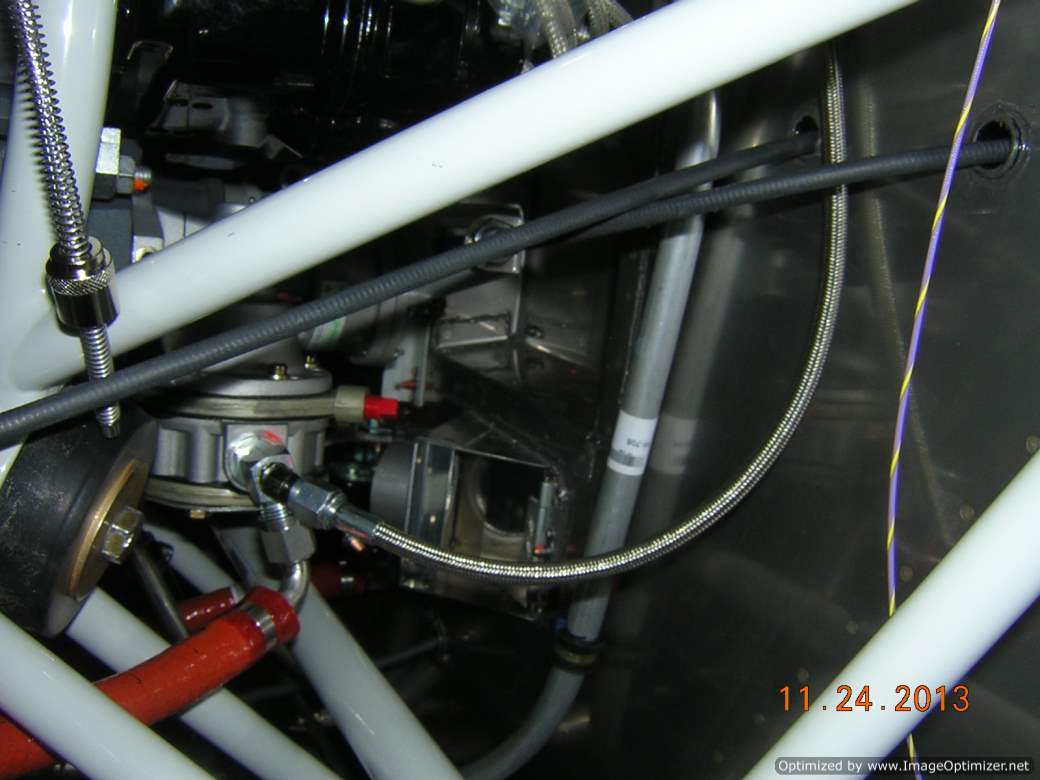

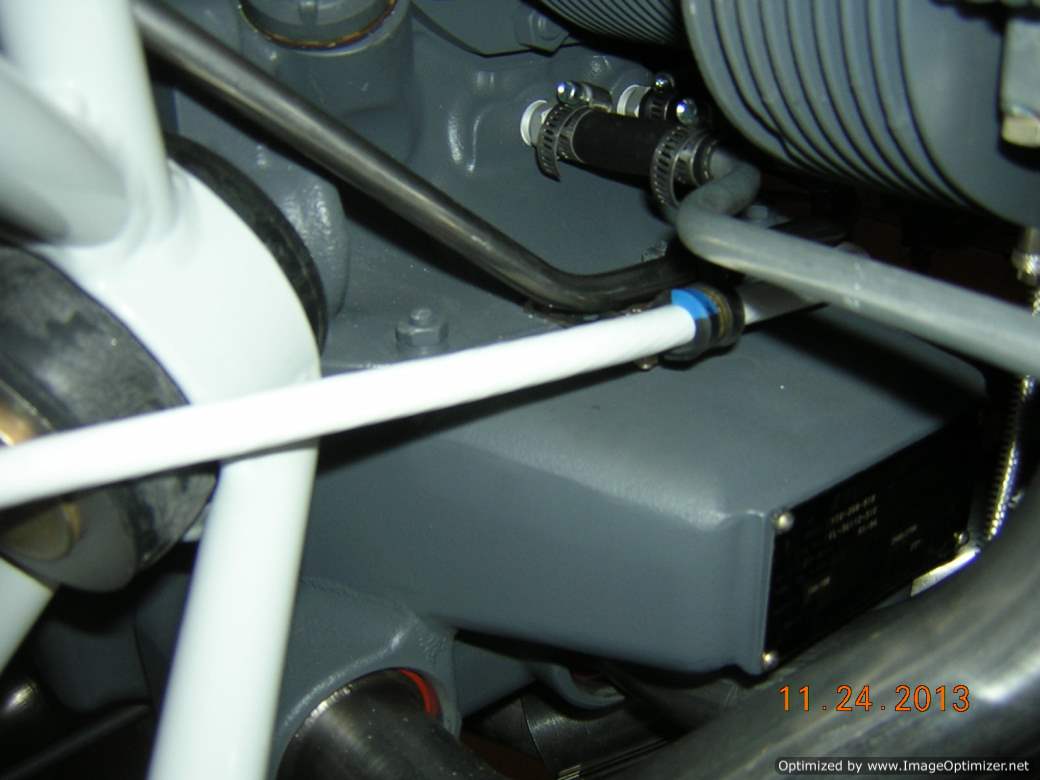

Fuel tube between fuel pump and fuel pressure manifold block


Fuel tube between fuel pump and fuel pressure manifold block

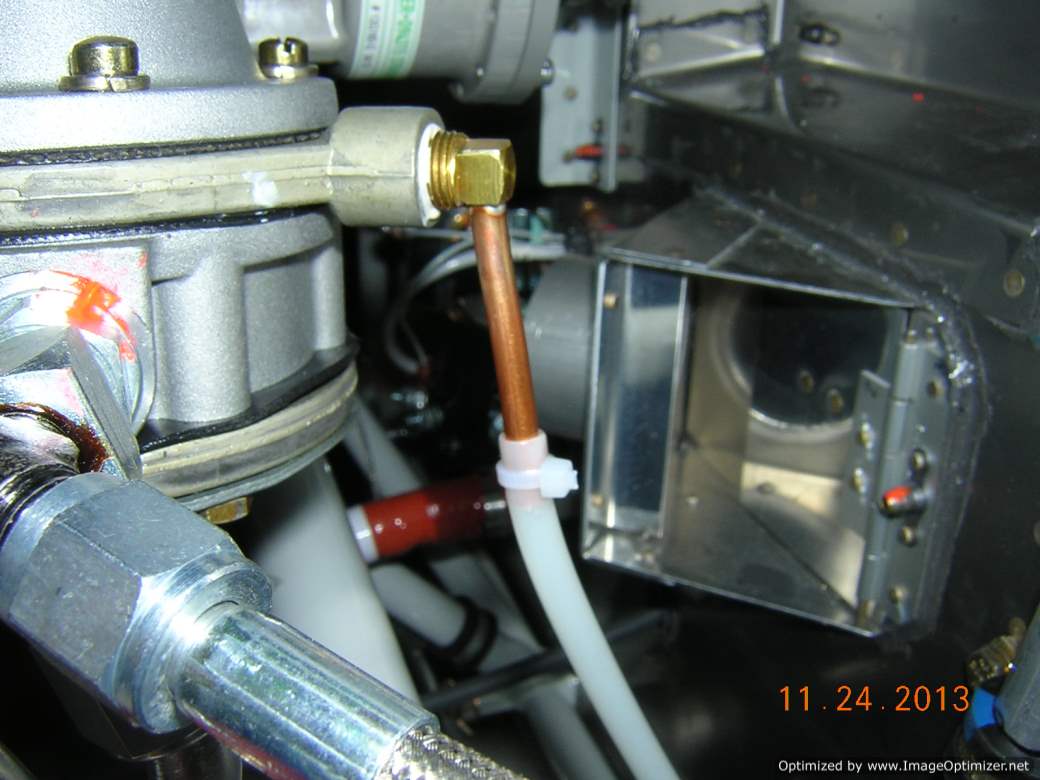

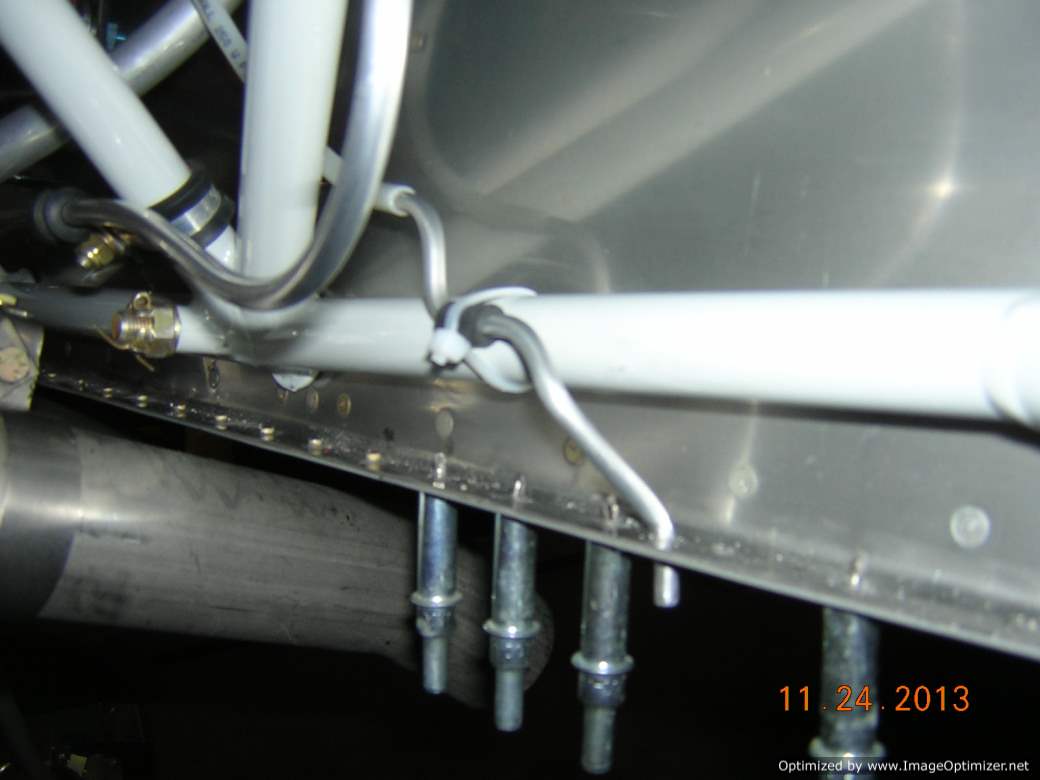

Fuel overflow tube


Fuel overflow tube

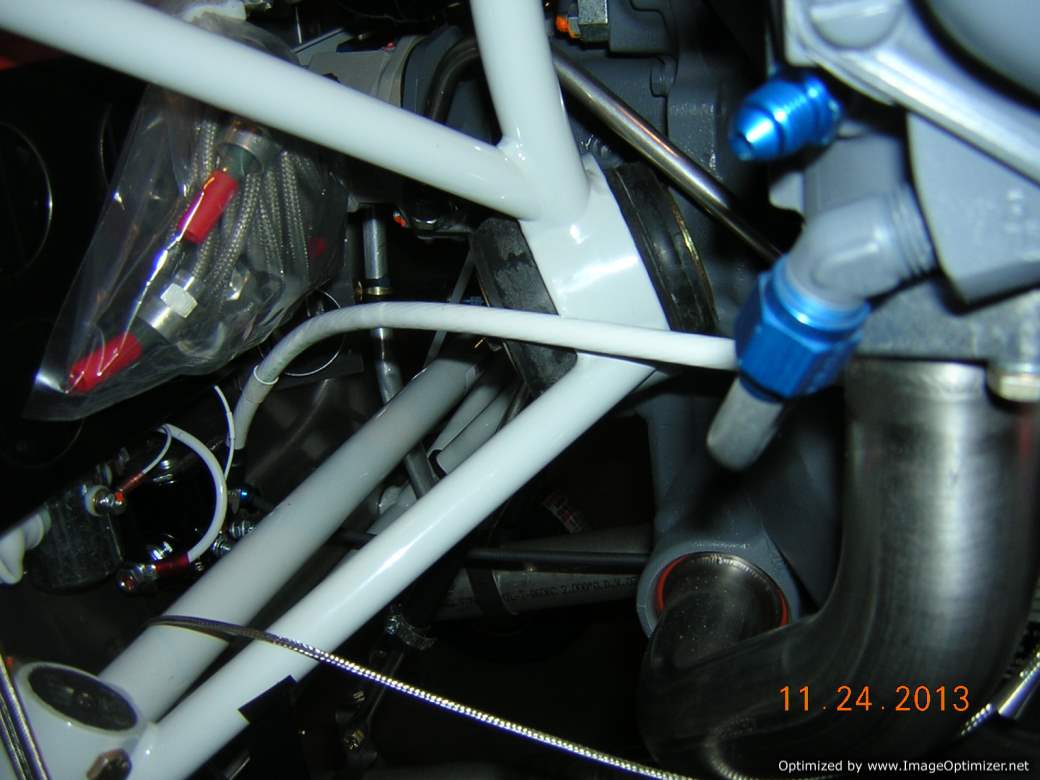

Cable from starter relay to starter, I need to add a protecting cover later

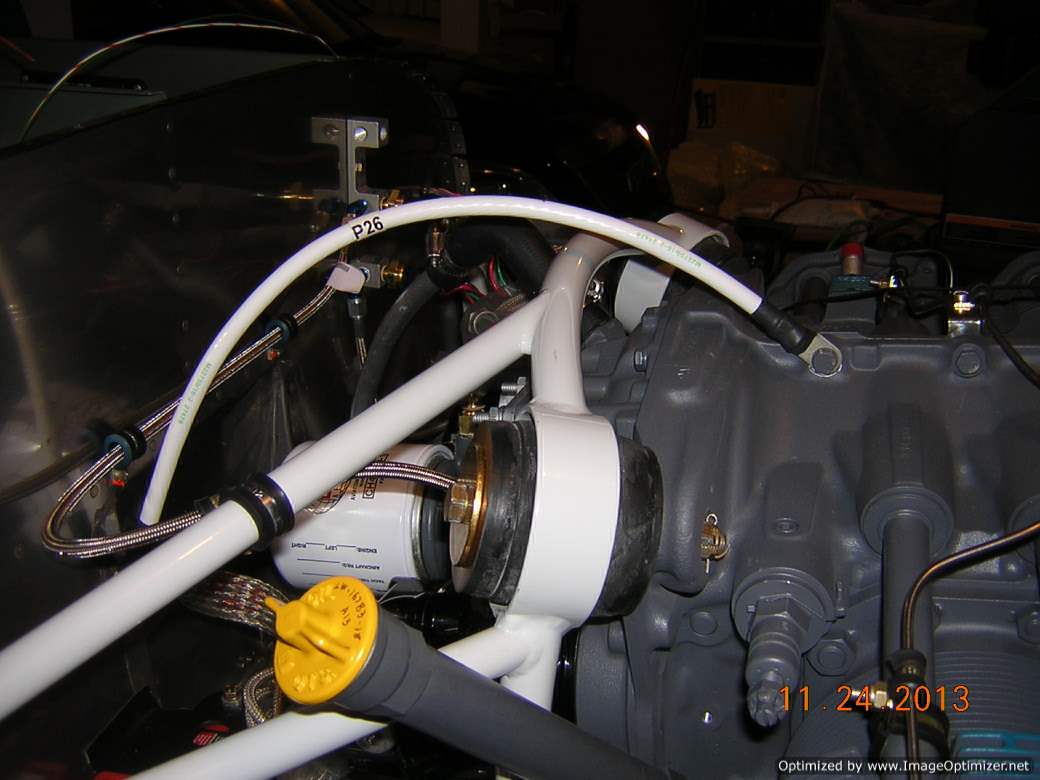

Starter cable is clamped to engine

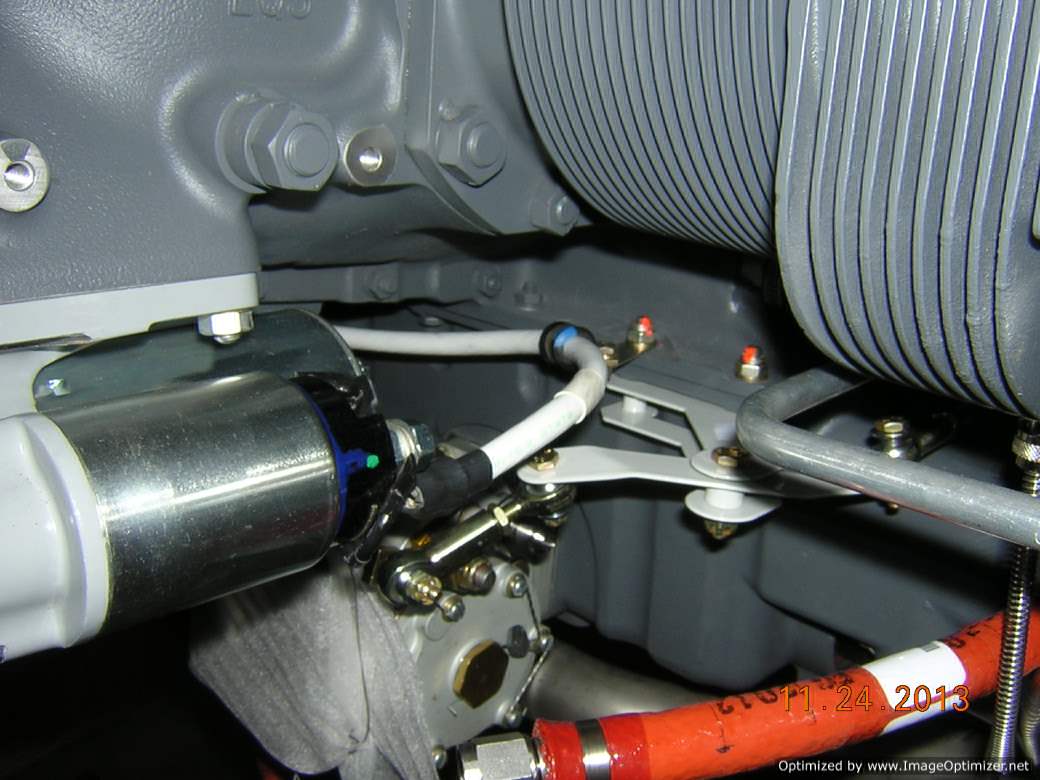

Starter cable out of starter relay

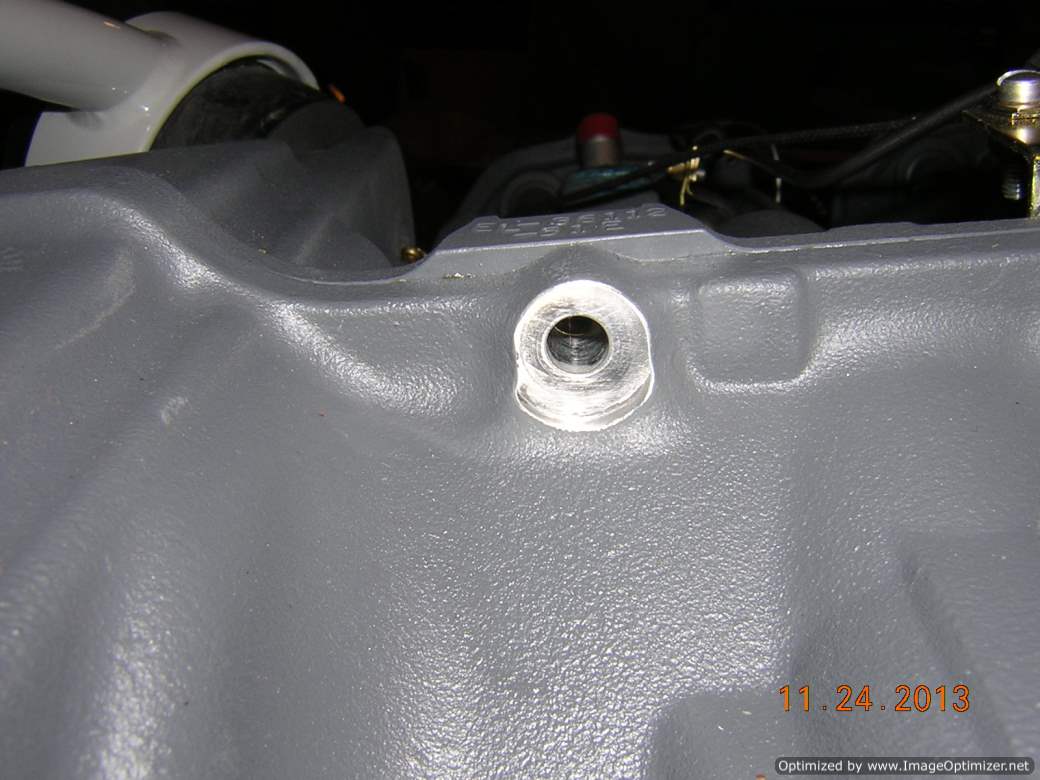

Removed a bolt on top of engine case, no paint, perfect for engine grounding cable


The cable connects engine case to battery ground
