01-11-2014: 4 hrs

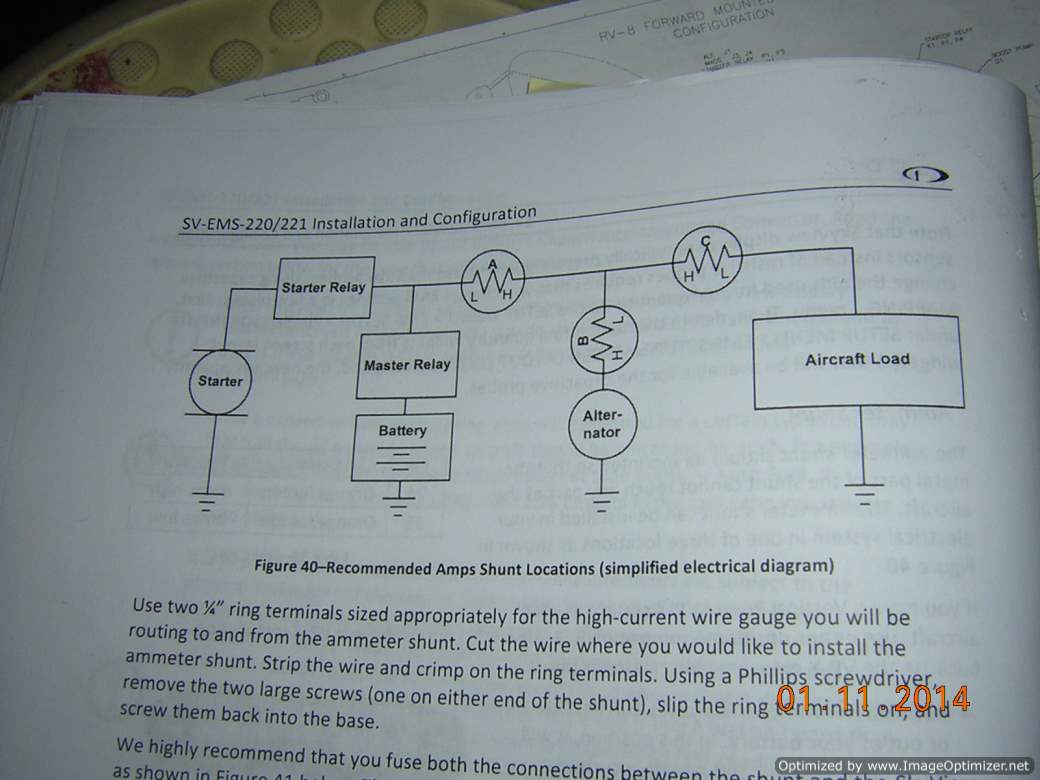

For shunt, I installed at Position B in Skyview Installation Guide. This position will measure the current from alternator.

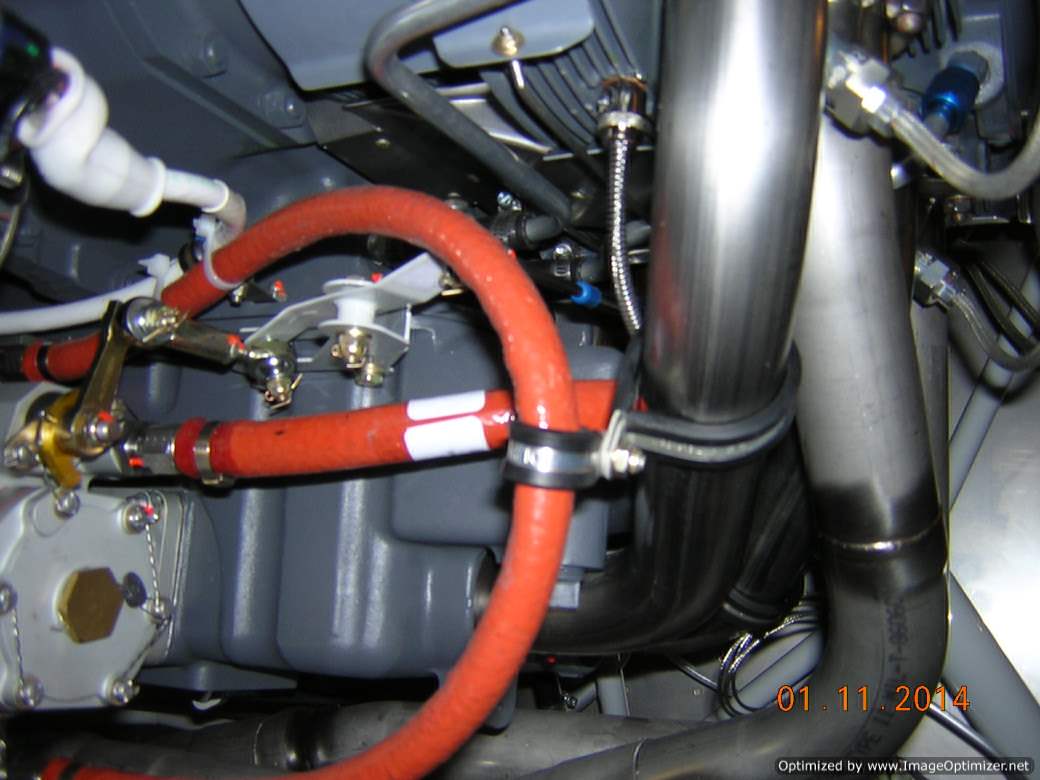

A shot showing fuel line to and from throttle body

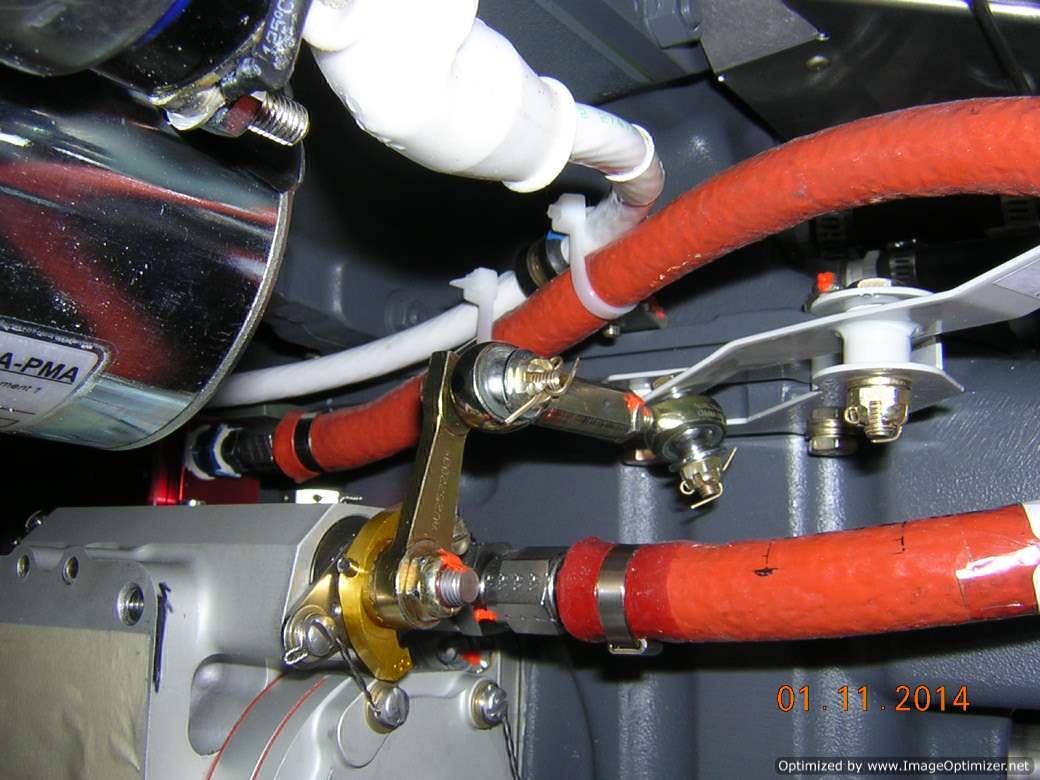

I tied the starter cable to fuel line (PS. I re-routed the starter cable later)

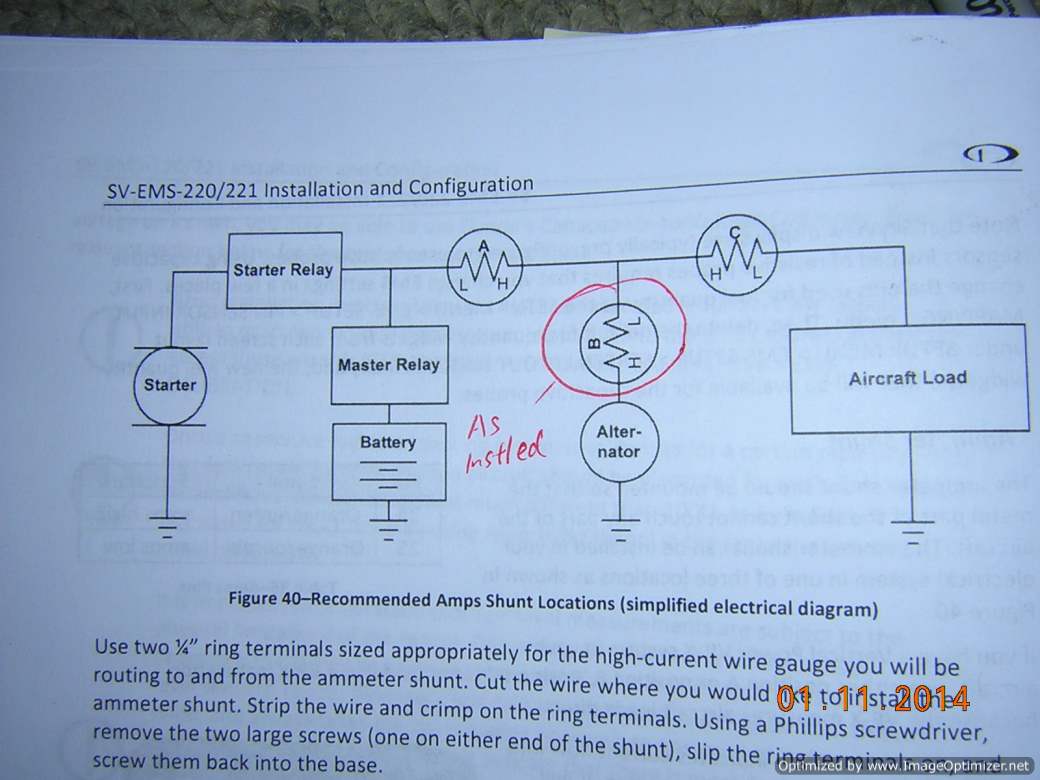

Position B is where I wired by current shunt

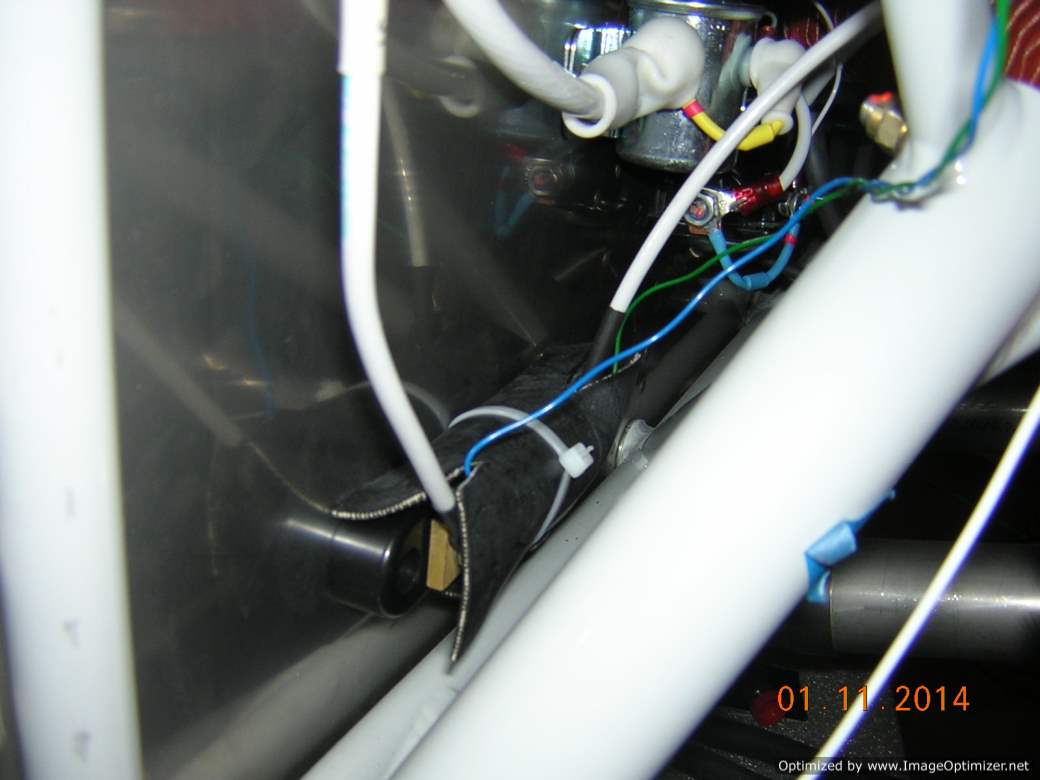

I covered the shunt with a left over baffle seal fabric

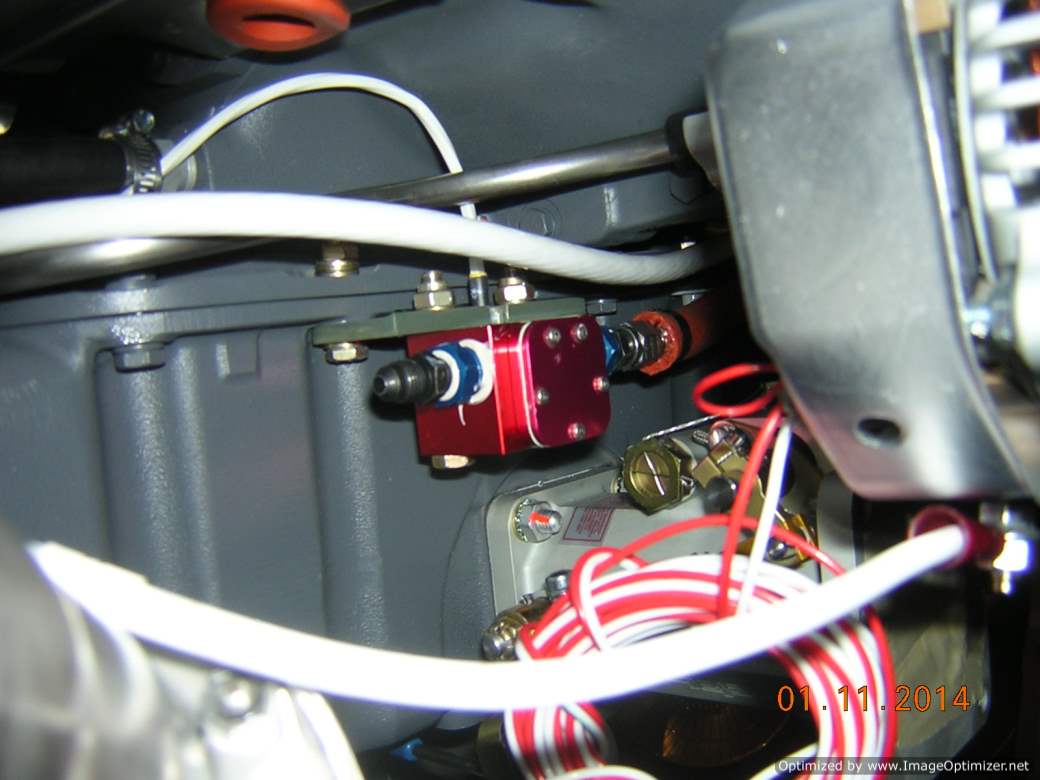

Fuel flow transducer is mounted to front oil sump, fittings are installed to the red cube
