01-23-2014: 1.5 hrs

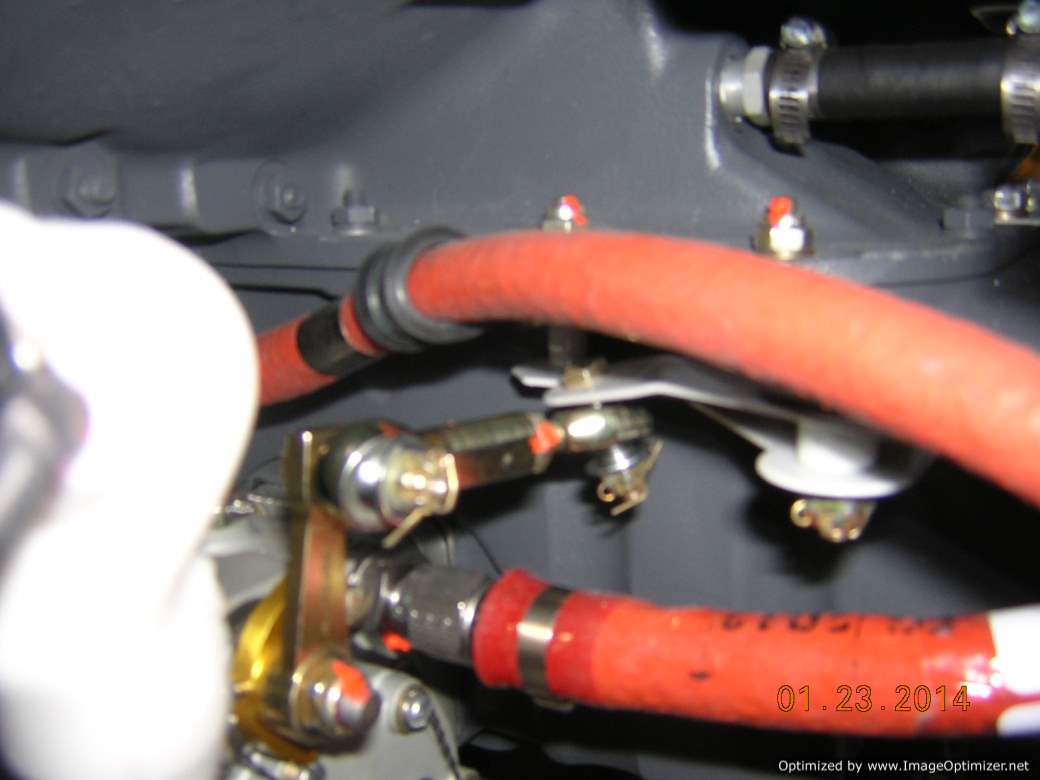

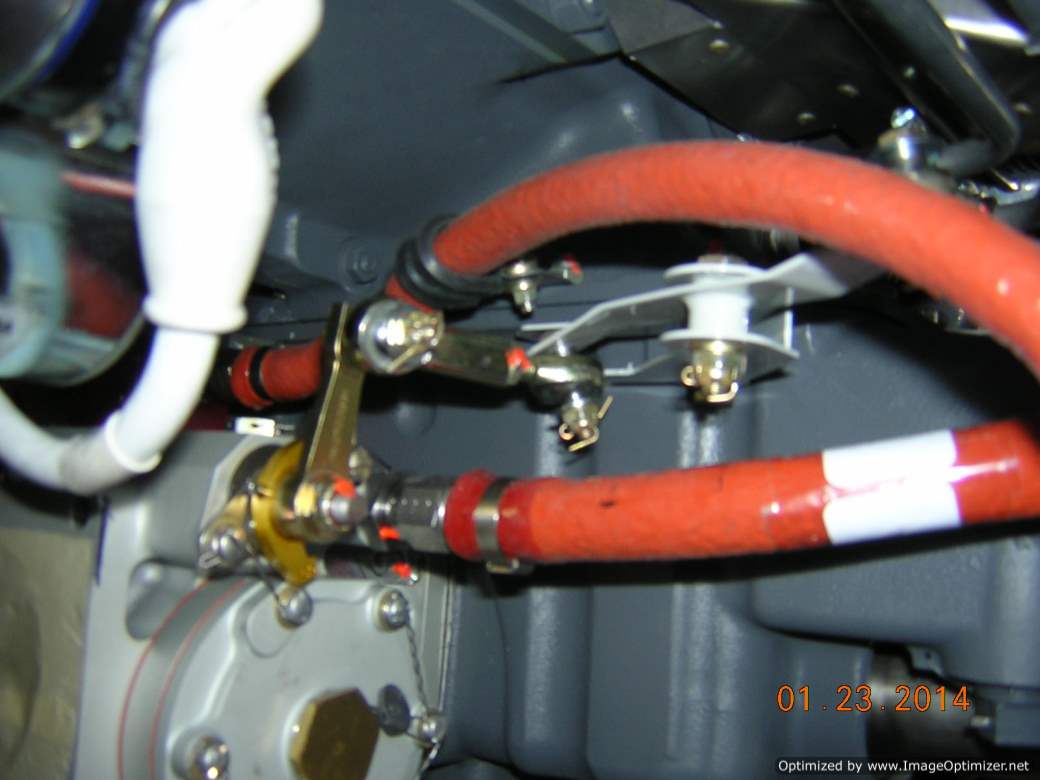

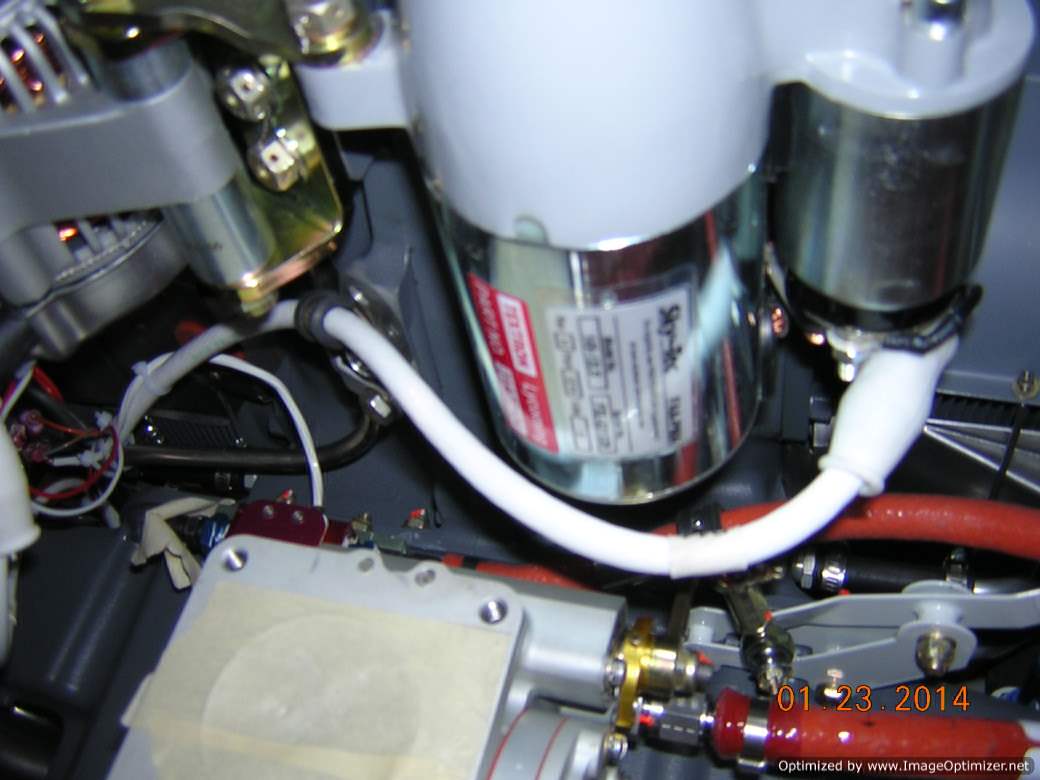

I didn't like the routing of the starter cable and fuel line between the mechanical fuel pump and throttle body. I had the starter cable clamped to oil sump bolt, and have the fuel line tied to the cable with plastic wire tie to clear the mixture control linkage. I don't like the plastic wire tie idea. So decided to re-route them. I used a bolt to clamp the starter cable underneath the engine, then clamped the fuel line to the oil sump. This looks much better.
