12-08-2013: 4 hrs
I

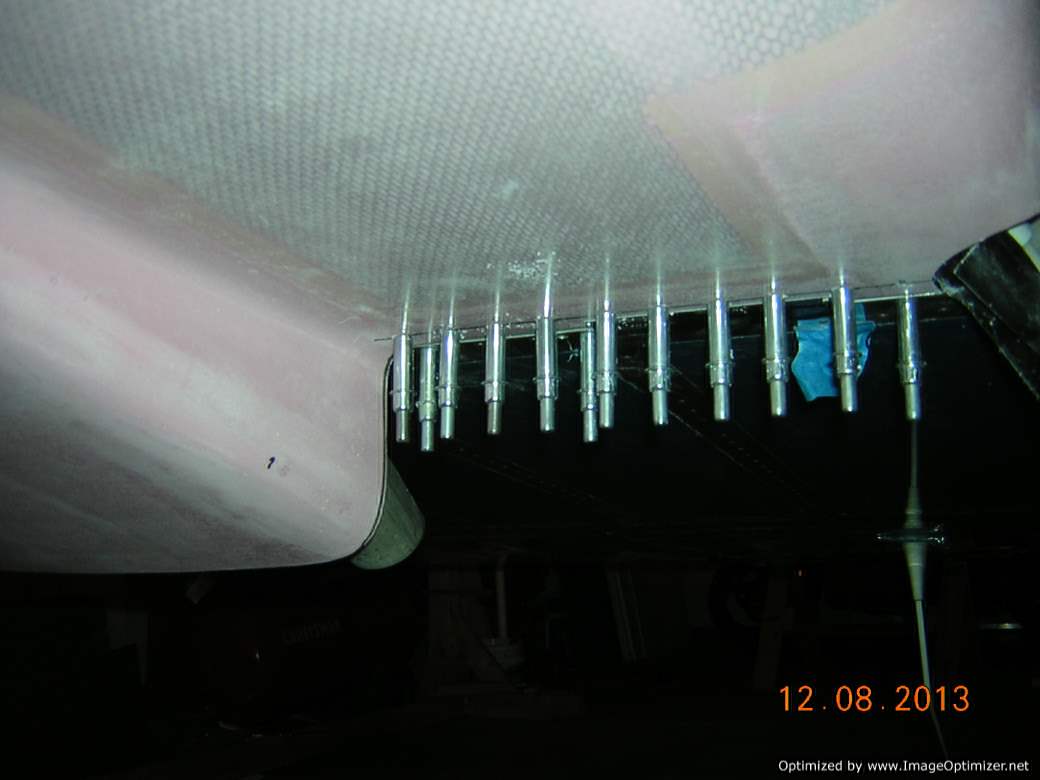

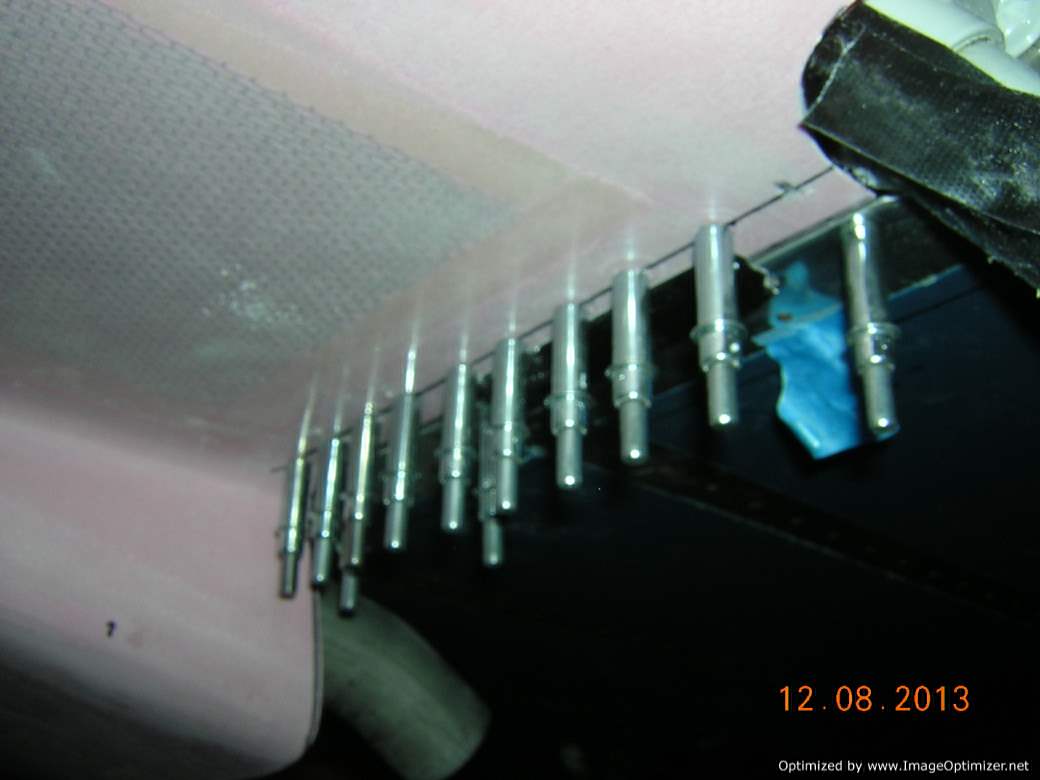

Lower cowl is drilled to bottom hinges
Another shot of the drilled lower cowl

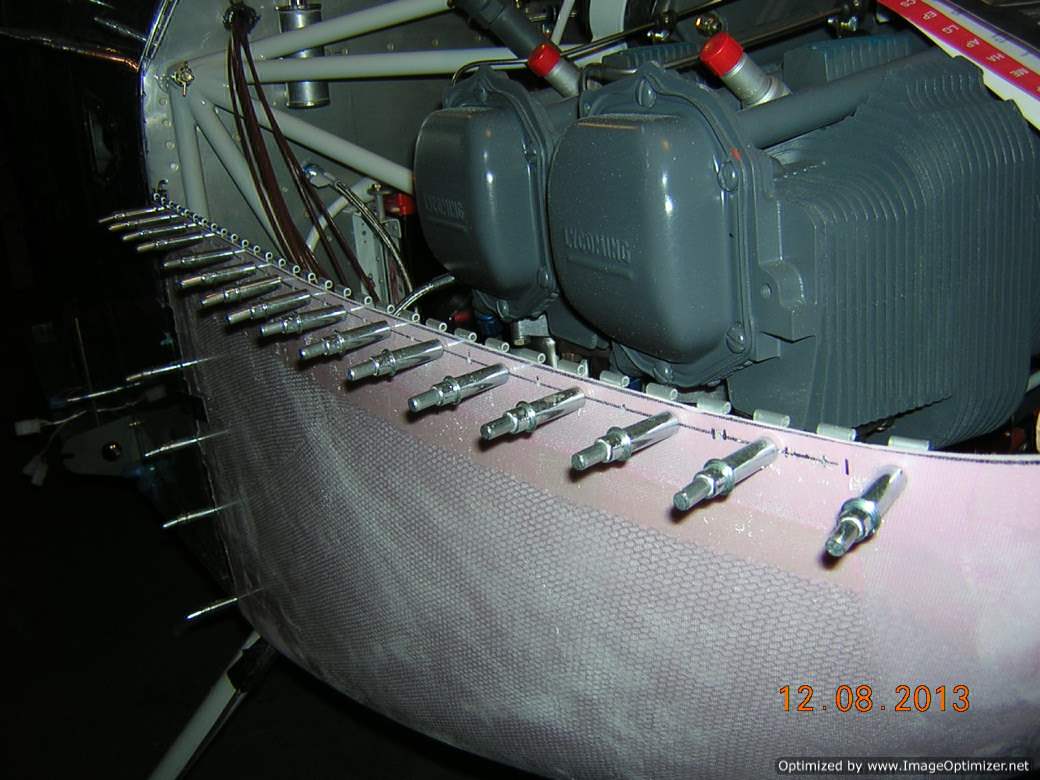

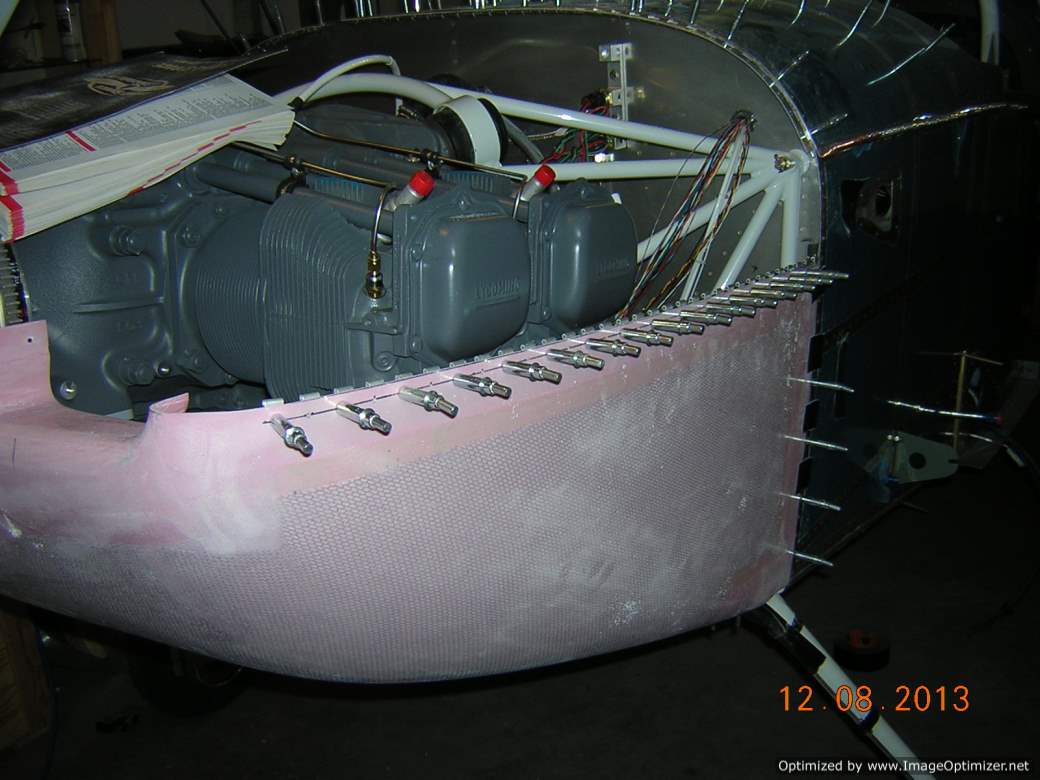

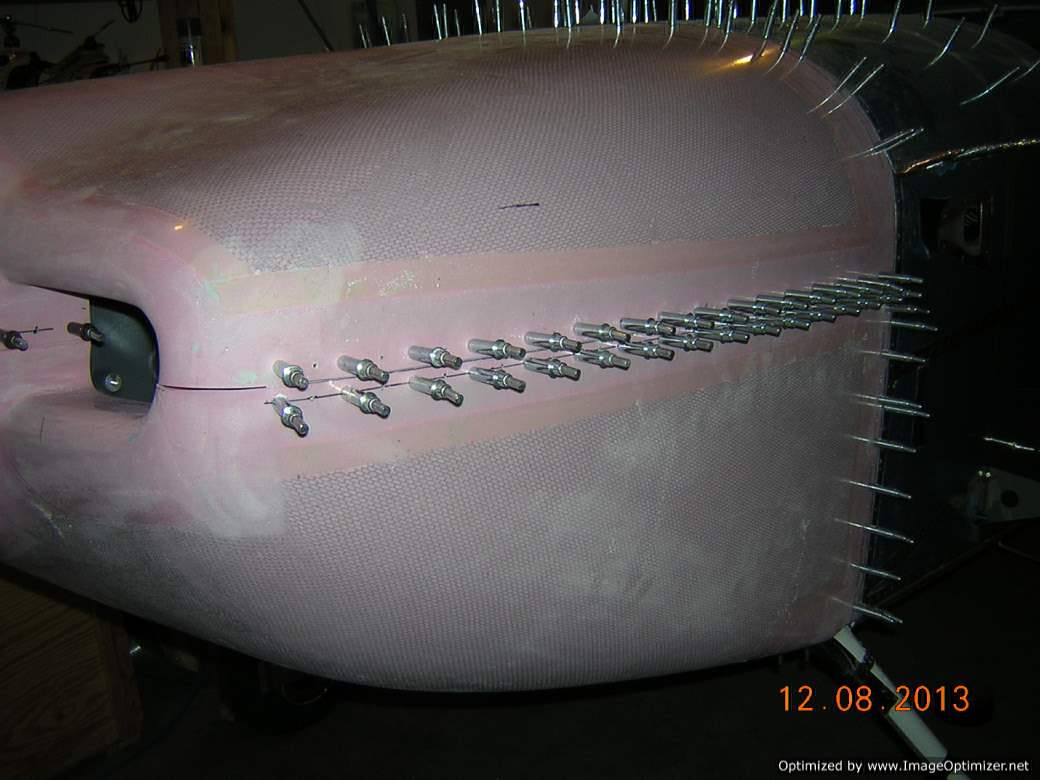

Lower cowl is drilled to side hinges that connect to upper cowl

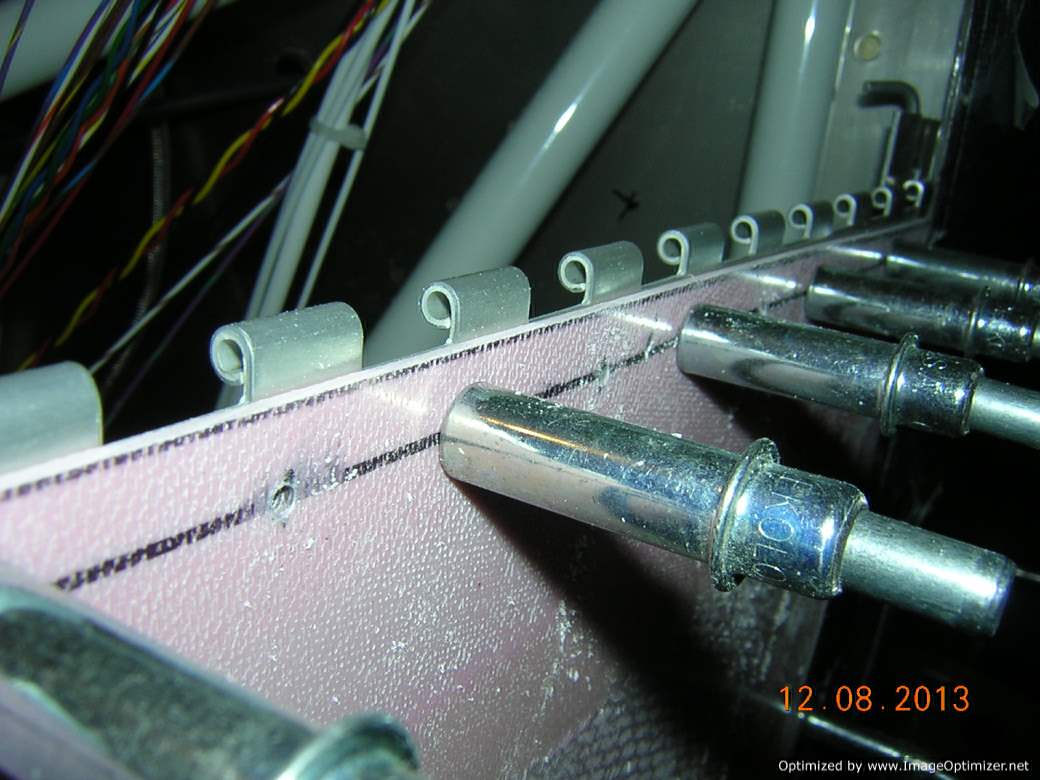

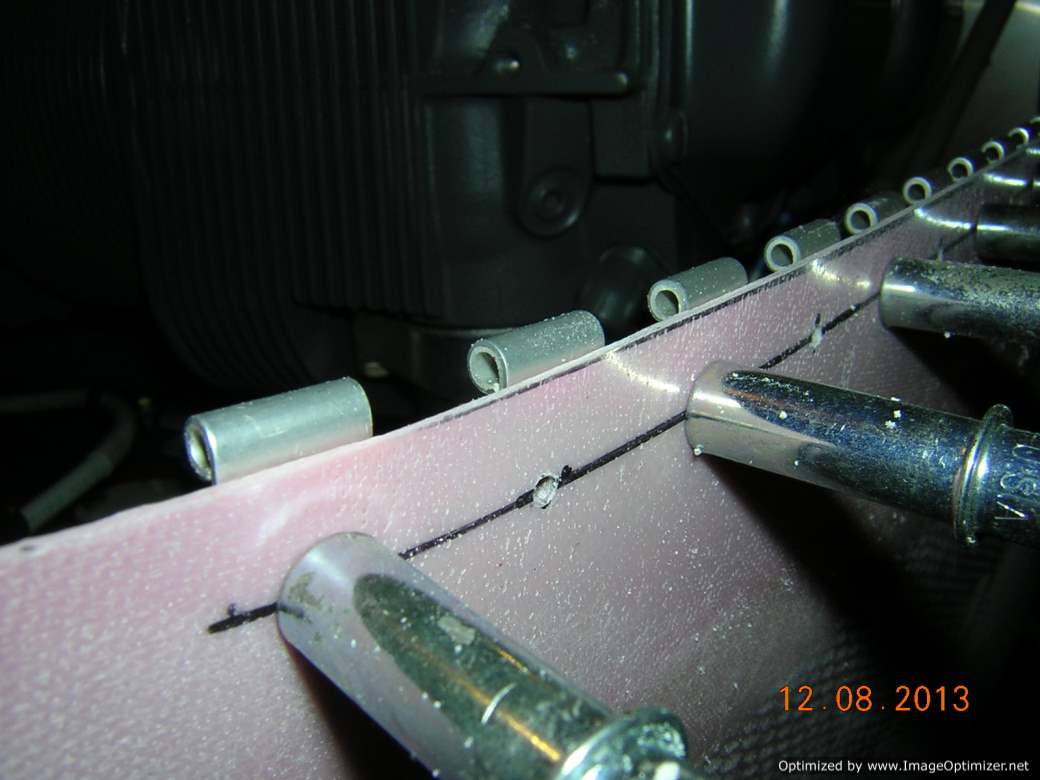

Detail of the front portion of side hinge. The hinge is slopped upward in aft direction for easy pin installation.
As you can see, the aft portion of the hinge is raised slightly
Right side hinge

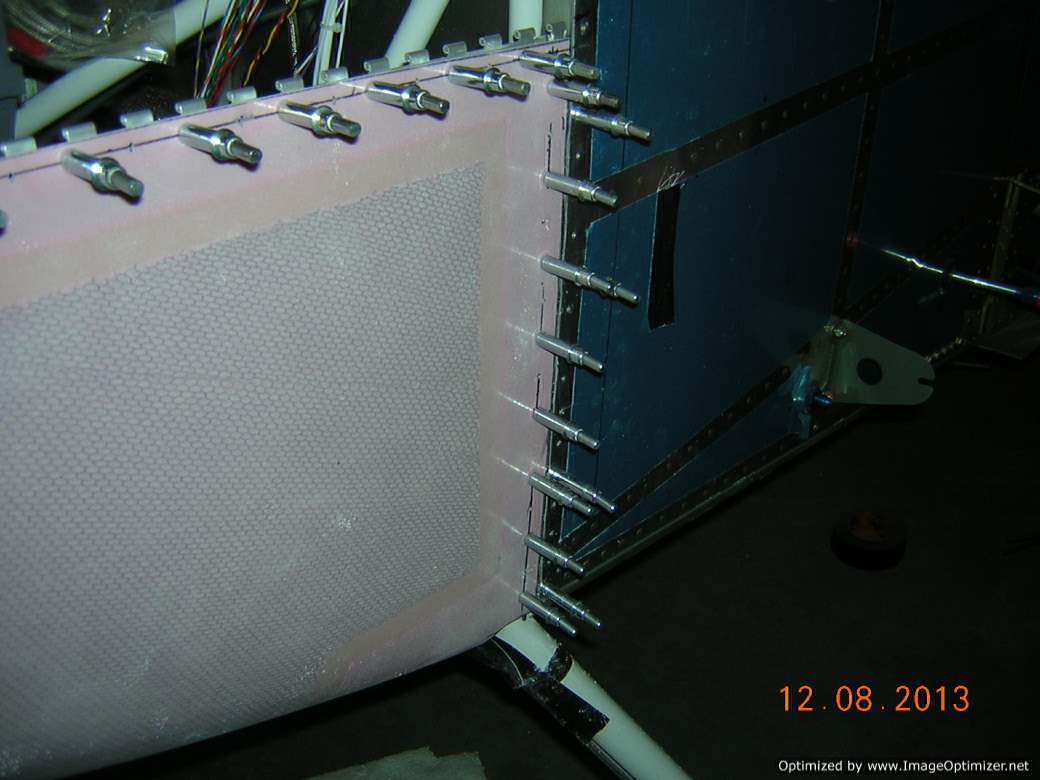

Lower cowl is drilled to fuselage side hinge

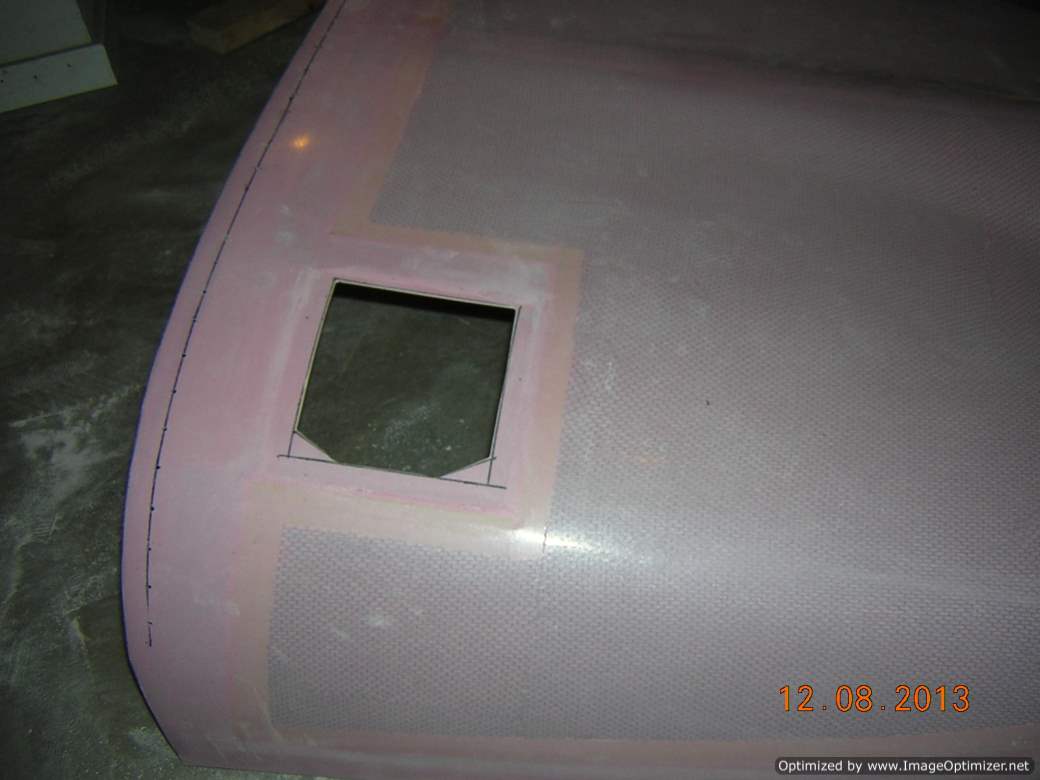

Upper cowl oil door is cut

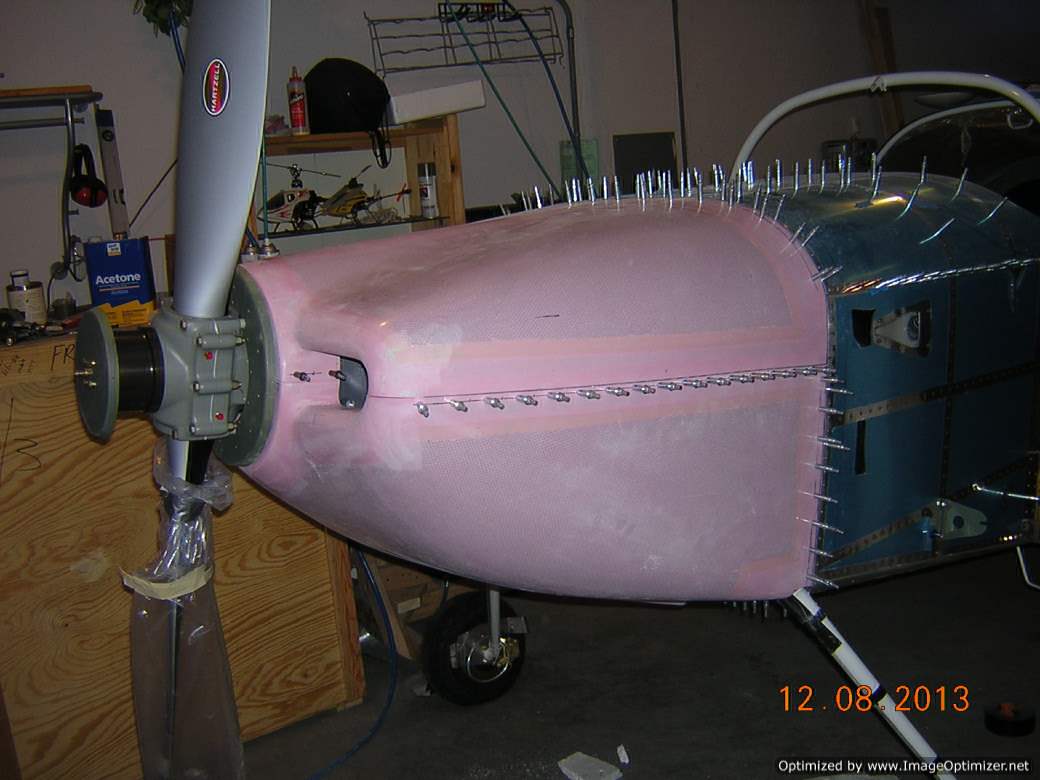

Upper and lower cowls are fit together for the first time

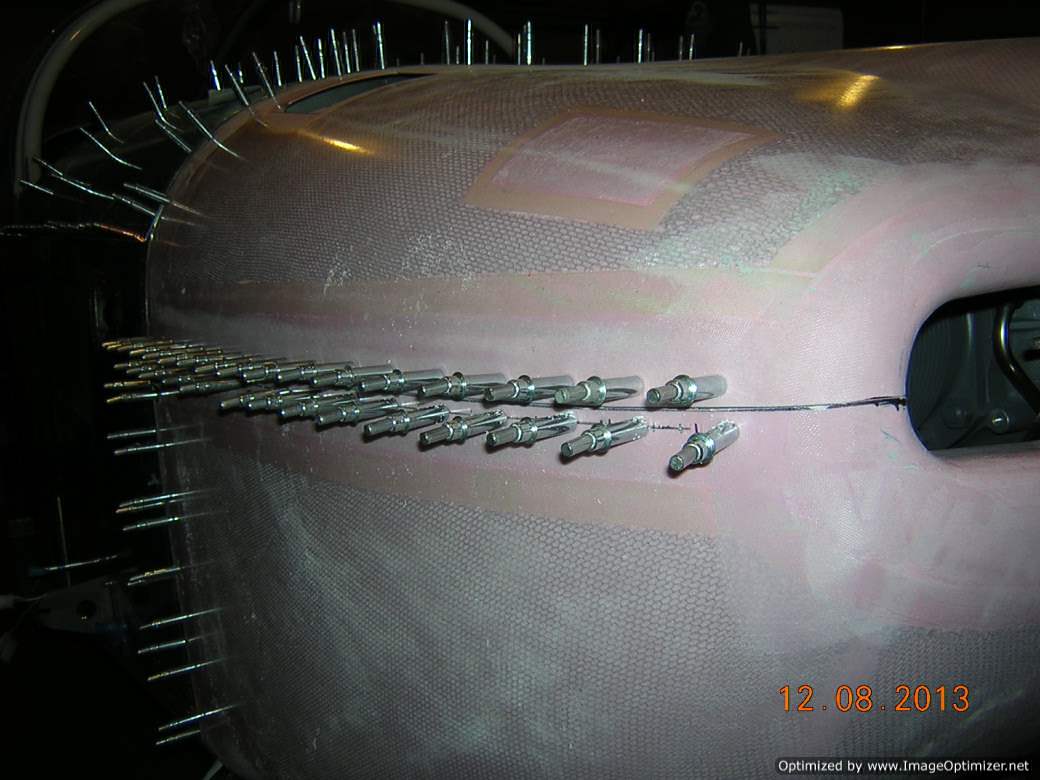

The seam between upper and lower cowl looks good to me
Right side seam

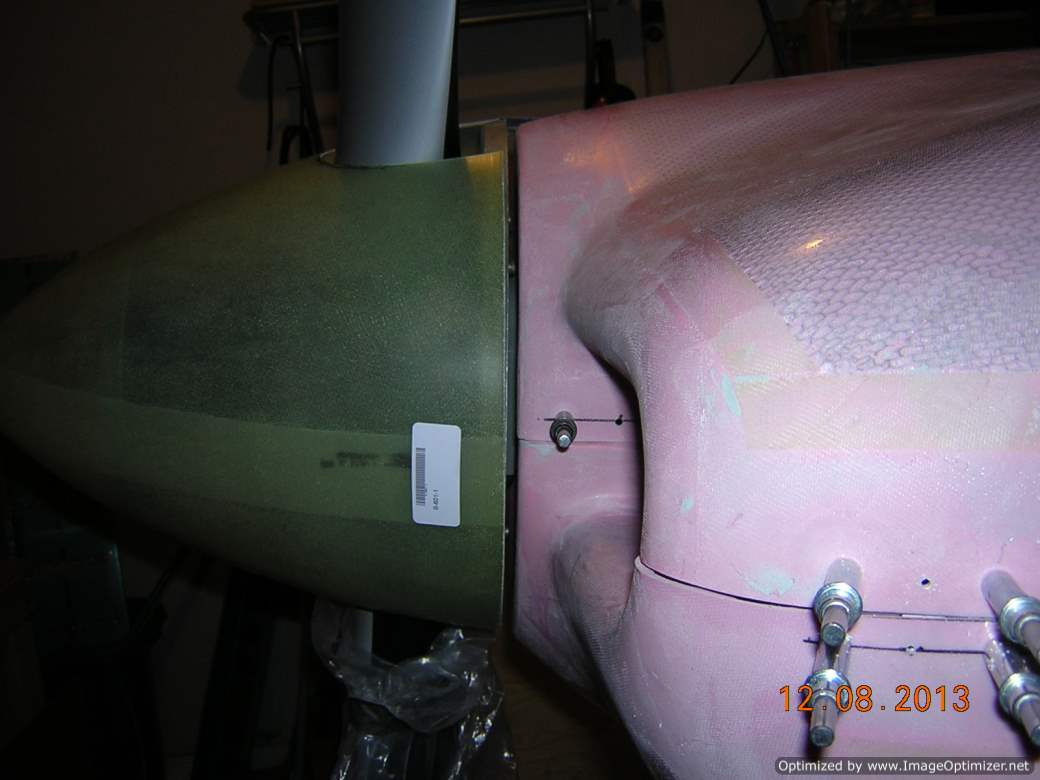

The gap between cowl and spinner is ok
