12-18-2013: 2 hrs
The paint on the brackets I worked on yesterday dried up, so I installed them to the engine, torque the 1/4" engine case bolts to 96 in-lb per instruction.
Since I need to decide the oil cooler location on the rear baffle, I need to have the #4 cylinder rear baffle trimmed for the upper cowl. After about 4 iterations, I finally can decide where to put the oil cooler (suggested to put as high up as possible for better cooling). Then I cut out the rear baffle for the oil cooler.
Since I need to decide the oil cooler location on the rear baffle, I need to have the #4 cylinder rear baffle trimmed for the upper cowl. After about 4 iterations, I finally can decide where to put the oil cooler (suggested to put as high up as possible for better cooling). Then I cut out the rear baffle for the oil cooler.

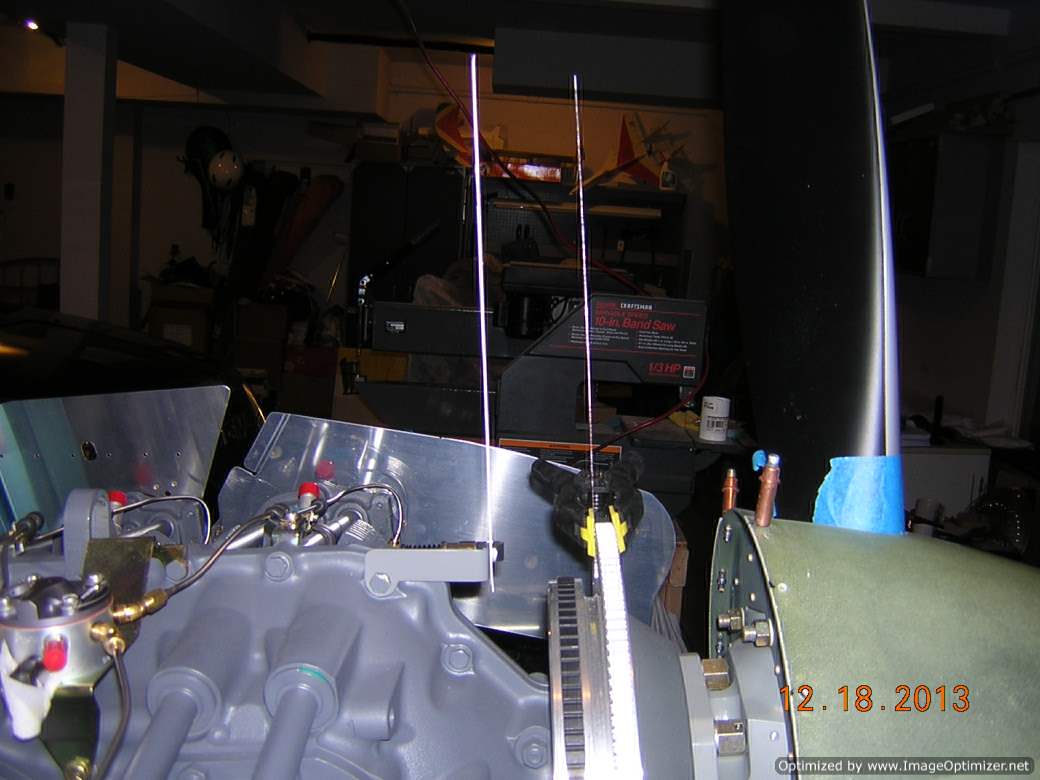

I clamped a straight edge on both the bracket and gear ring to align them

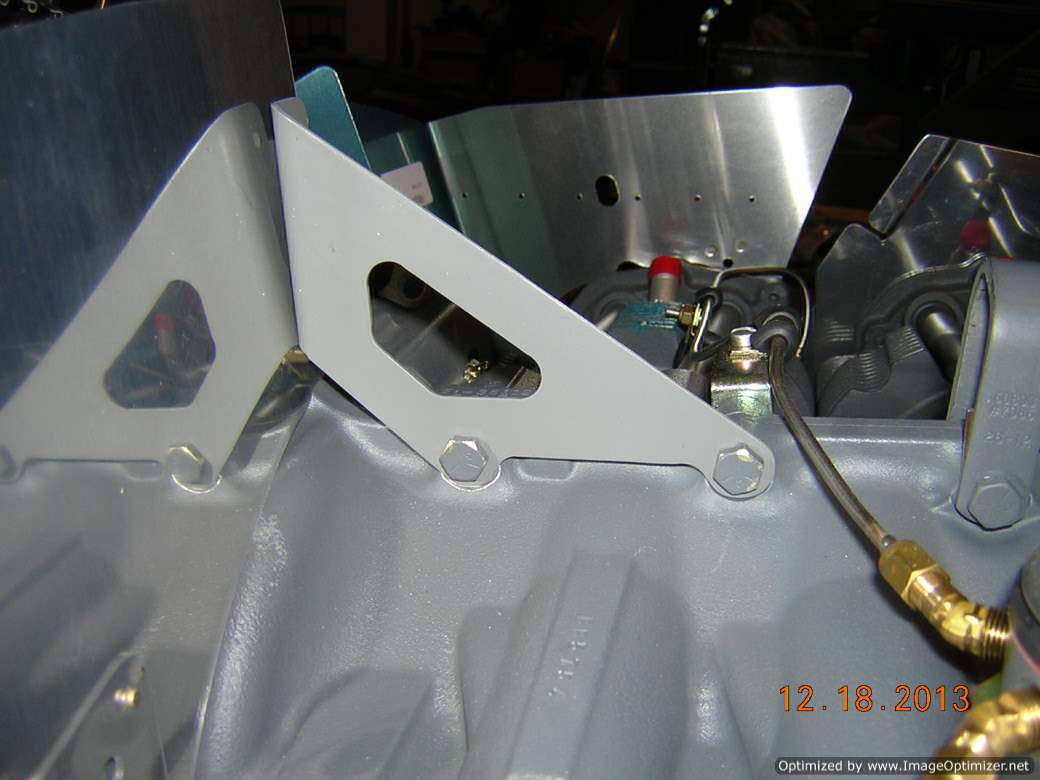

The aft center support bracket doesn't fit the rear baffle, I may need to cut it and rivet an angle to fit

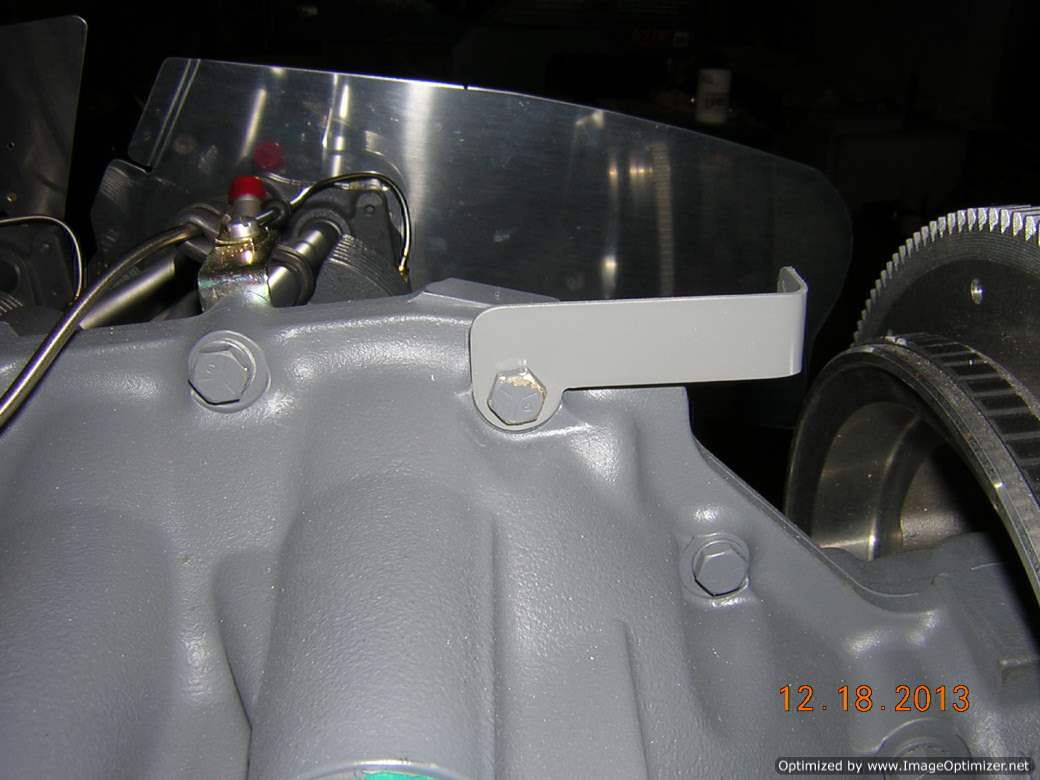

A shot of the front center support bracket

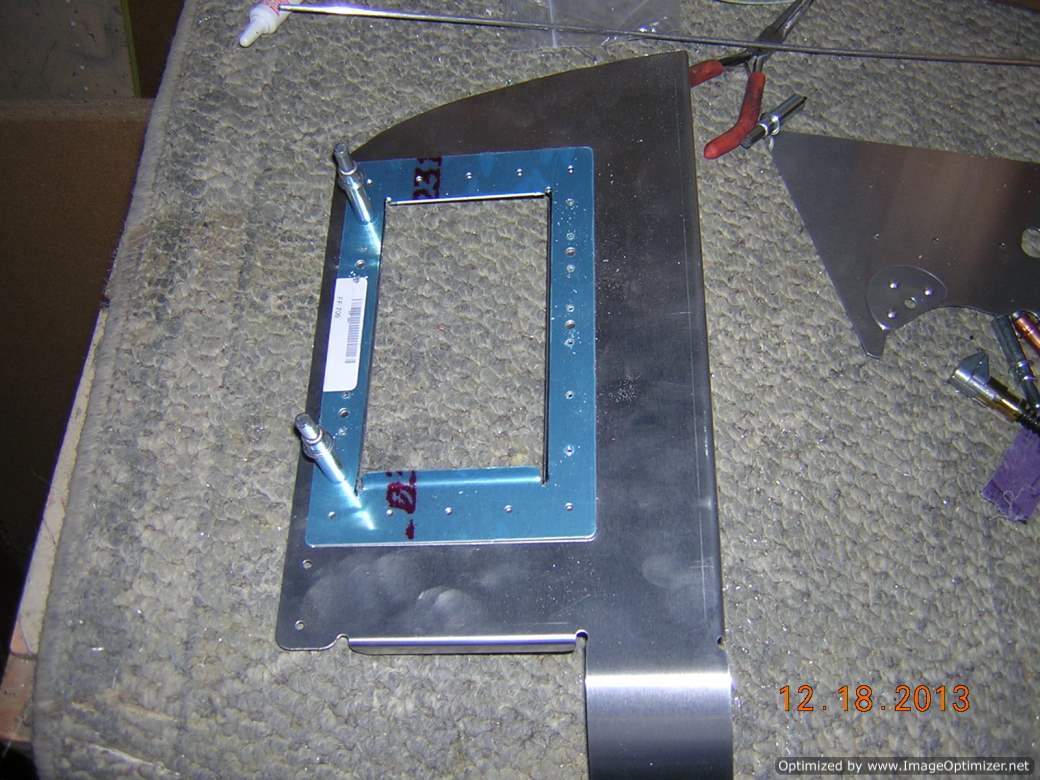

Oil cooler opening is cut on the left rear baffle plate
