12-20-2013: 2.5 hrs

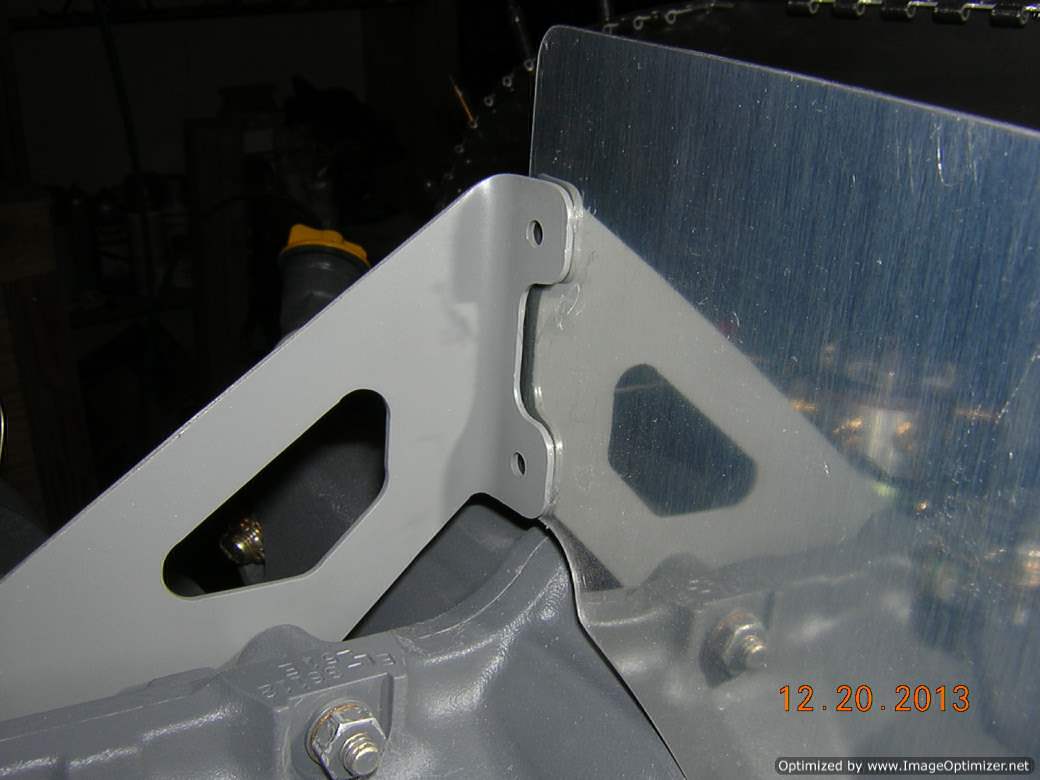

The aft center bracket doesn't fit the rear baffle well, pushing baffle aftward

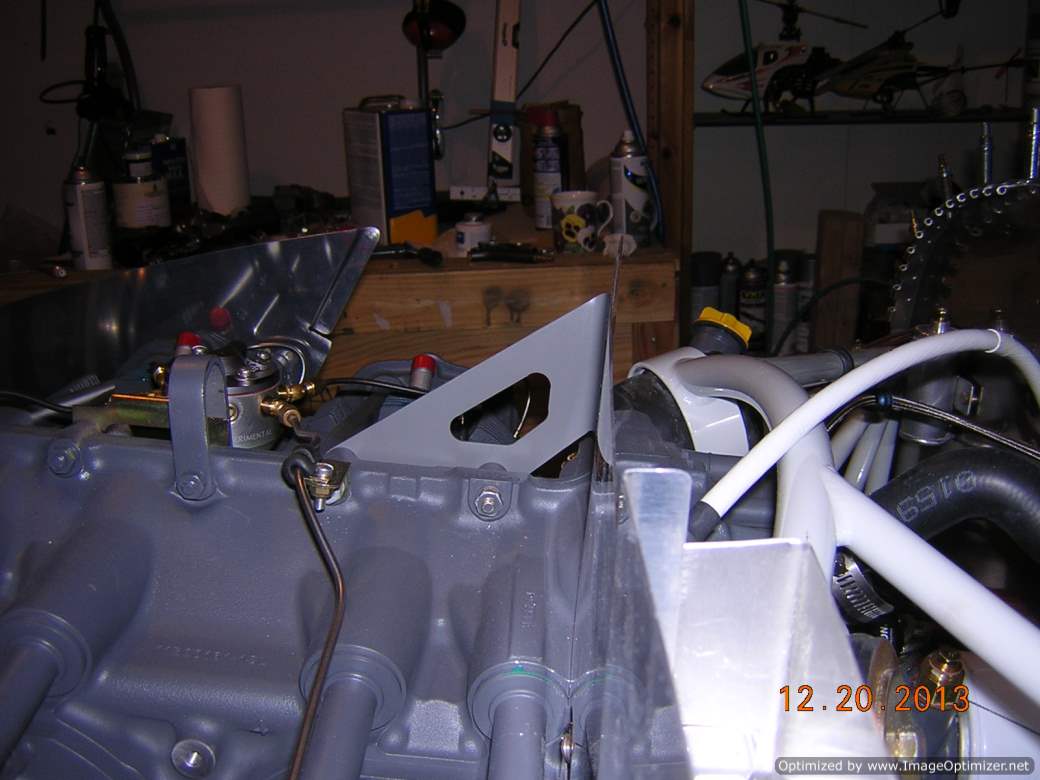

Another picture showing the aft center baffle support bracket is not fitting well

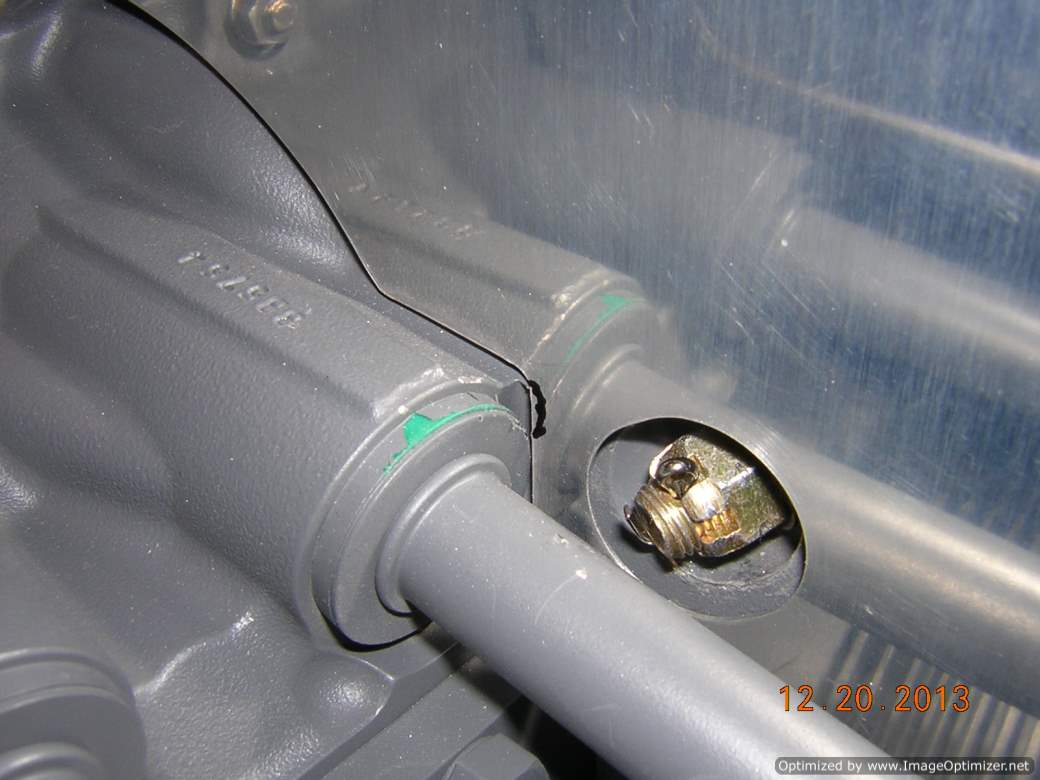

This area has to be trimmed a little to clear the engine case

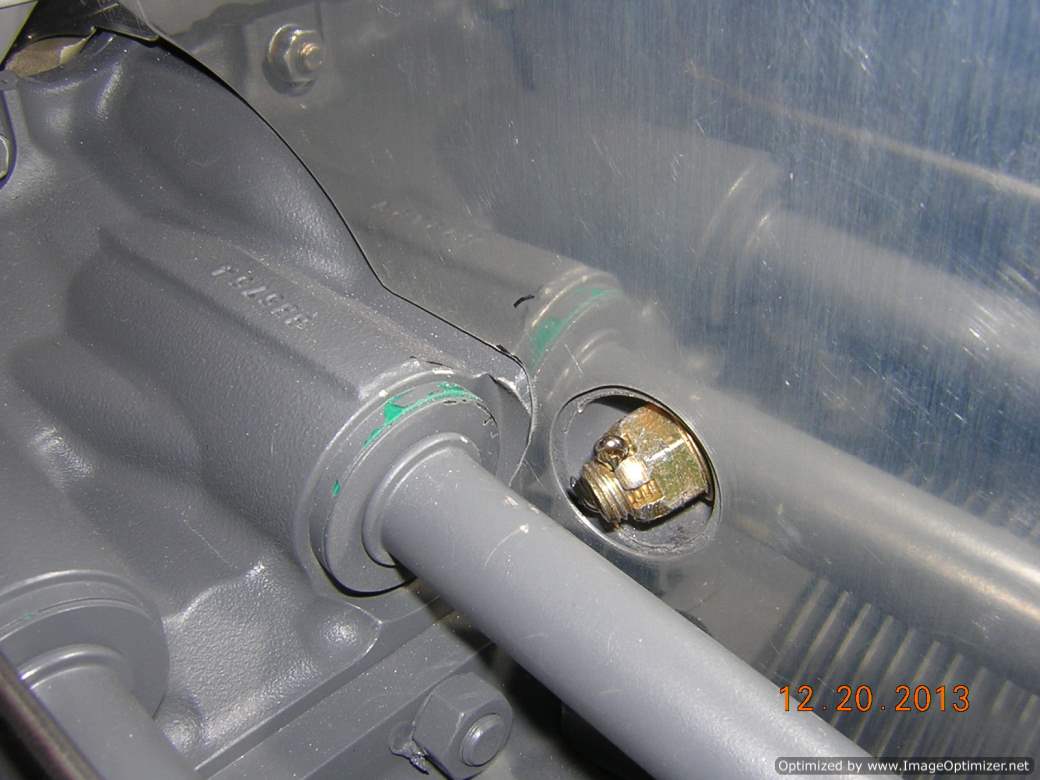

Baffle is trimmed, and it now fits engine ok

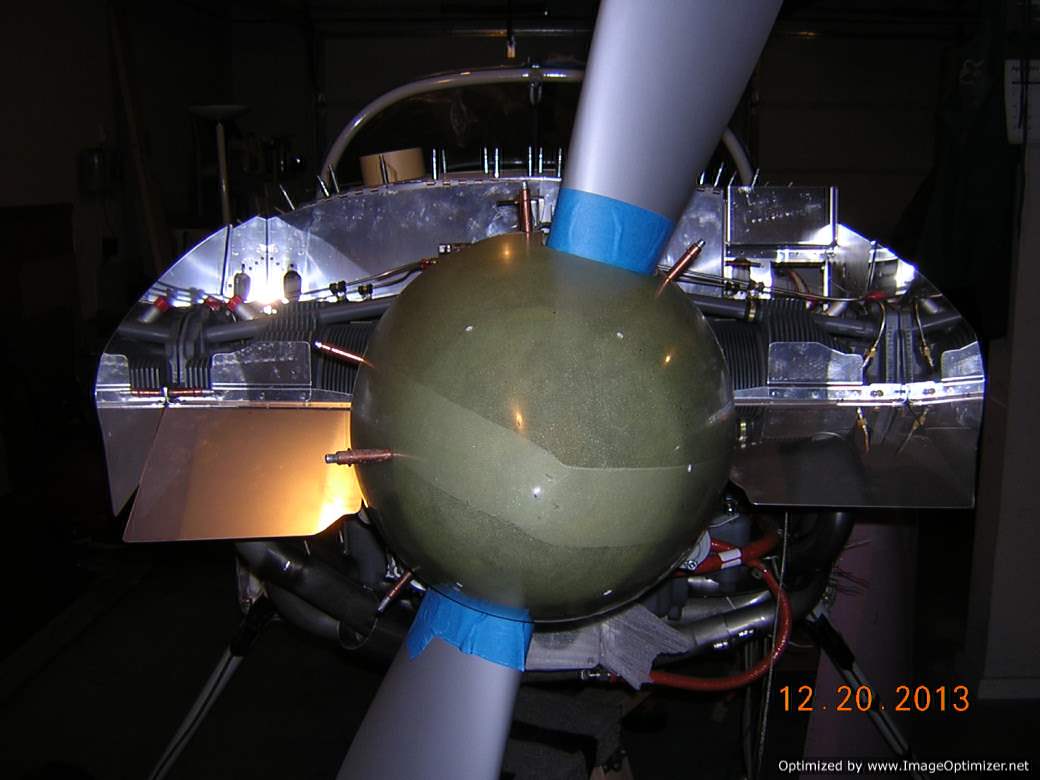

Air ramps are clecoed to the side baffles

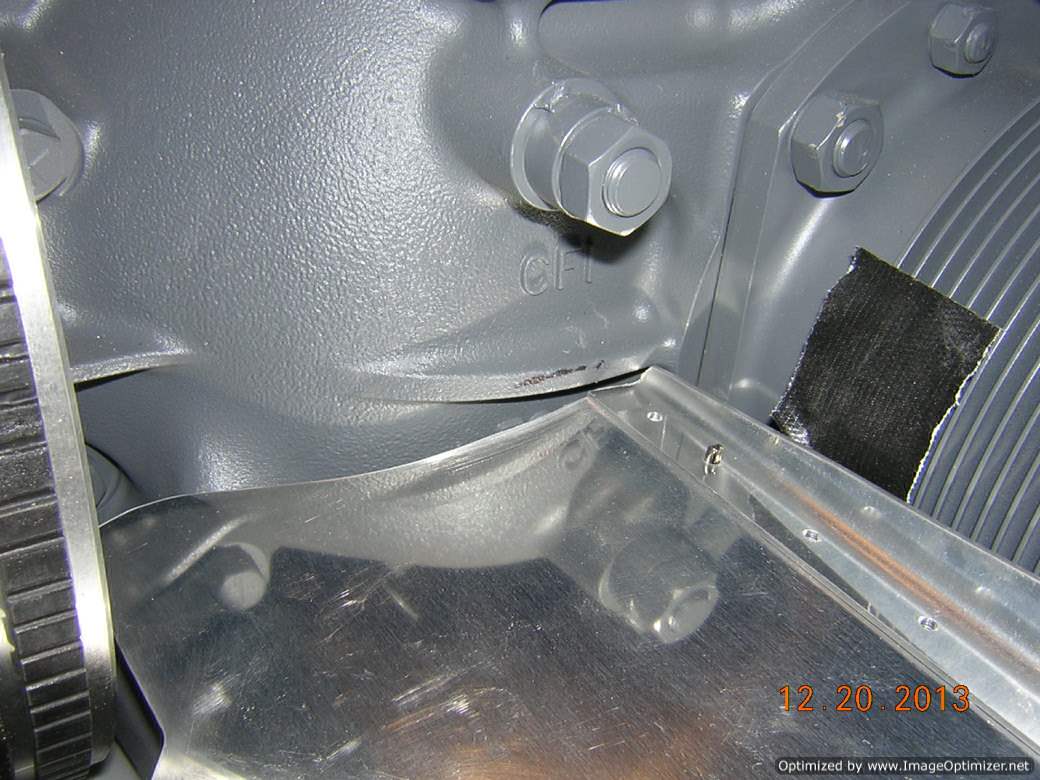

More trimming is required here to clear the engine case

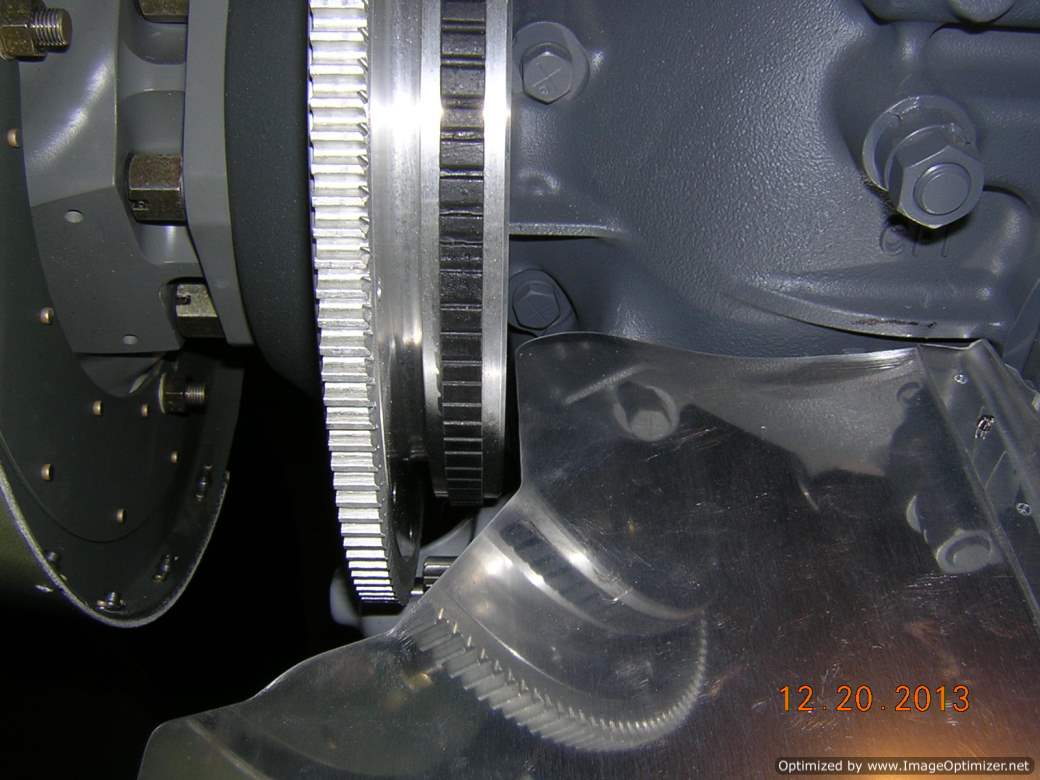

It now looks better

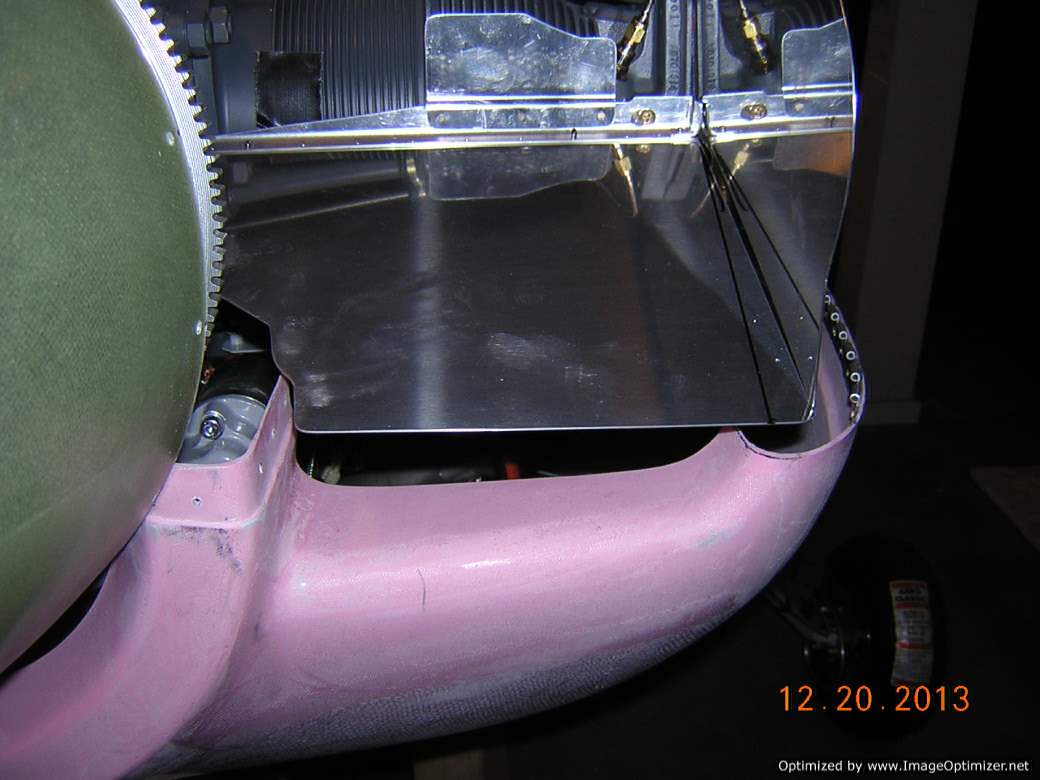

Left air ramp is marked for trimming. Since the air filter box will be installed here, the construction will deviate from the instruction provided with the baffle kit
